About the product

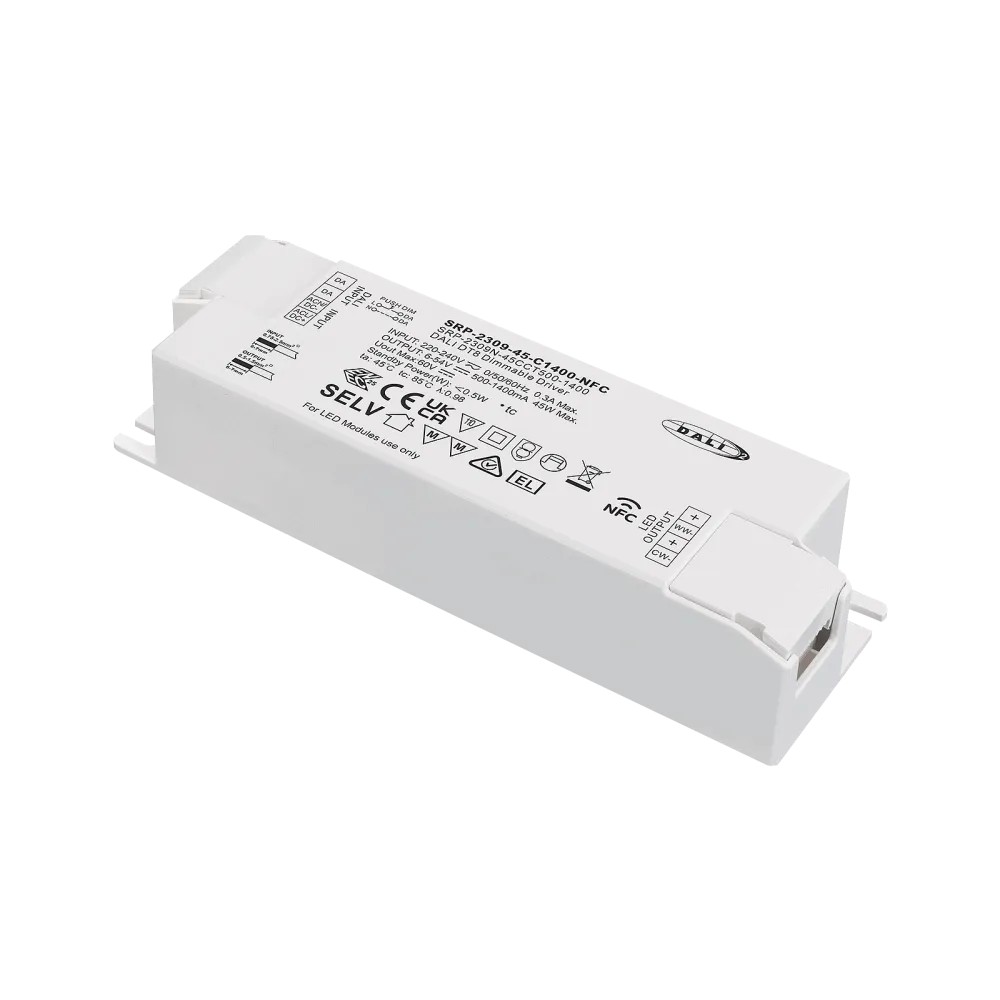

SRP-2309-45-C1400-NFC is a flexible, dimmable tunable white LED converter with constant current output. The power supply can be controlled with DALI DT8. The output current can be adjusted between 500 and 1400mA via NFC.
Control
- DALI2 DT8
Application
- Tunable White
Current setting
- NFC
Dimming range
The load-dependent dimming range is 0.1% to 100%.
Dimming method: Amplitude dimming
Technical data
DALI2 DT8 dimmable 2-channel TW power supply unit
2 channel 500~1400mA constant current output, selectable via NFC program tool
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
Built-in DALI2 interface, DALI DT8 device
Dimmable LED driver. Max. Output power 45W
Output voltage range: 6-58VDC
Class 2 power supply, fully insulated plastic housing
High power factor and efficiency
For switching and dimming Tunable White LED lighting fixtures
Amplitude dimming, smooth and deep dimming down to 0.01%
Compatible with universal DALI masters that support DT8 commands
IP20 protection class
5 years warranty
Dimensions: 145 x 45 x 28mm
Product specifications
| Power | 45 W |
| Output voltage range (VDC) | 6-58 V |
| Output current | 500-1400 mA |
| Input voltage range (VAC) | 200-240 V |
| Manufacturer | Sunricher |
| Manufacturer warranty | 5 years |
| Connection | Push-in terminal |
| IP protection | IP20 |
| Height | 28 mm |
| Width | 45 mm |
| Length | 145 mm |
| Application | Tunable white |
| Dimming method | Current regulation |
| Current setting | NFC |
| Channels | 2 |
| Control | DALI, DALI DT8, AC Push Dimming |
| Product series | SRP-2309 |
