44W Tunable White LED Driver CC 700-1050mA,9-42Vdc, DALI DT8

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

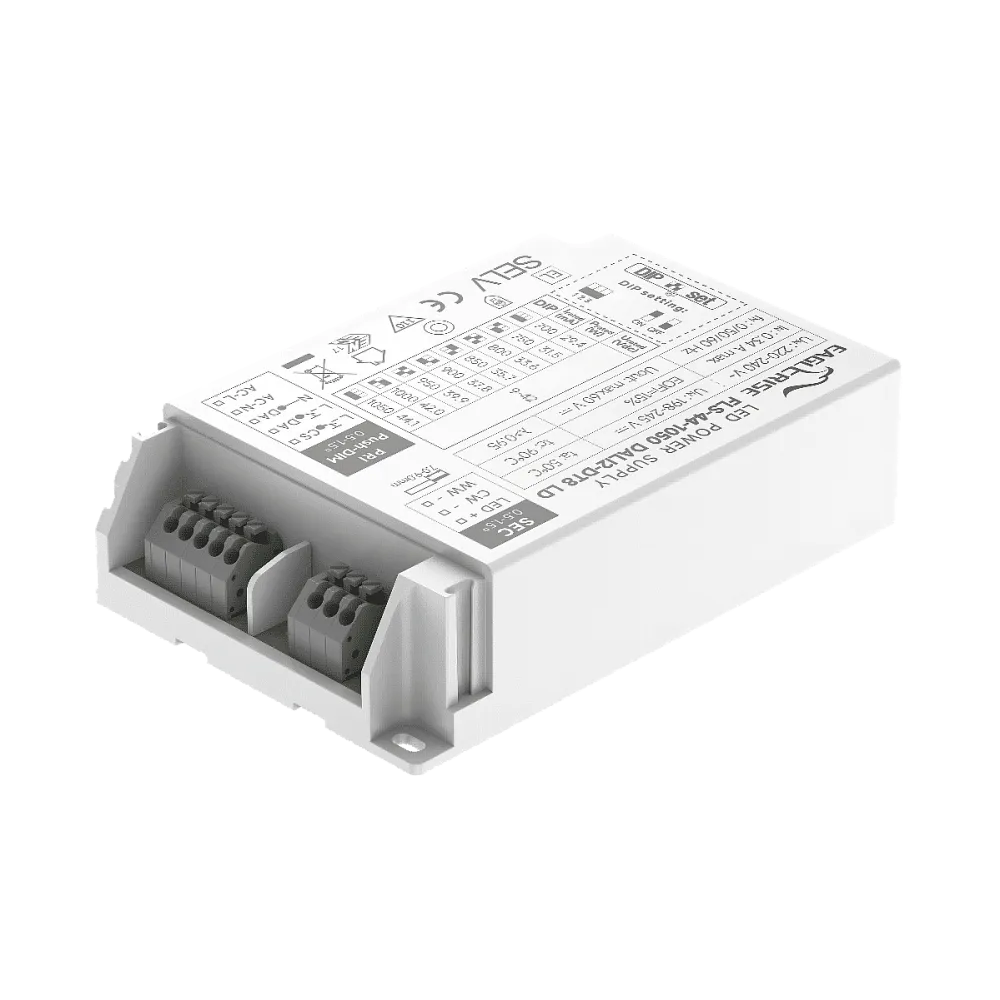

The LED driver FLS-44-1050-DALI2-DT8-LD with constant current output is designed to operate Tunable White LED lighting applications from 700 to 1050mA in the voltage range from 9 to 42Vdc. The output current can be set via DIP switch on the unit. Side covers with integrated strain relief are mounted for operation outside the luminaire. The driver can be dimmed with DALI2 and AC Push in the range 1-100%.

Two push-buttons are required for push-button operation. One push-button for brightness and one push-button for colour temperature.

Technical data

Forward voltage range 9 to 42Vdc
DALI2 DT8 and AC Push interface
Amplitude dimming with dimming range 1…100%
Adjustable output currents 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
Covers can be removed if not required
Dimensions 110 x 74 x 30mm (L x W x H) without side cover / 160x74x30mm with side cover

Product specifications

Power	44 W
Output voltage range (VDC)	9-42 V
Output current	700-1050 mA
Input voltage range (VAC)	200-240 V
Manufacturer	Eaglerise
Manufacturer warranty	5 years
Additional functions	EL mark
Connection	Push-in terminal
IP protection	IP20
Height	30 mm
Width	74 mm
Length	110 mm
Application	Tunable white
Dimming method	Current regulation
Current setting	DIP switch
Channels	2
Control	DALI DT8, AC Push Dimming
Product series	FLS
