About the product

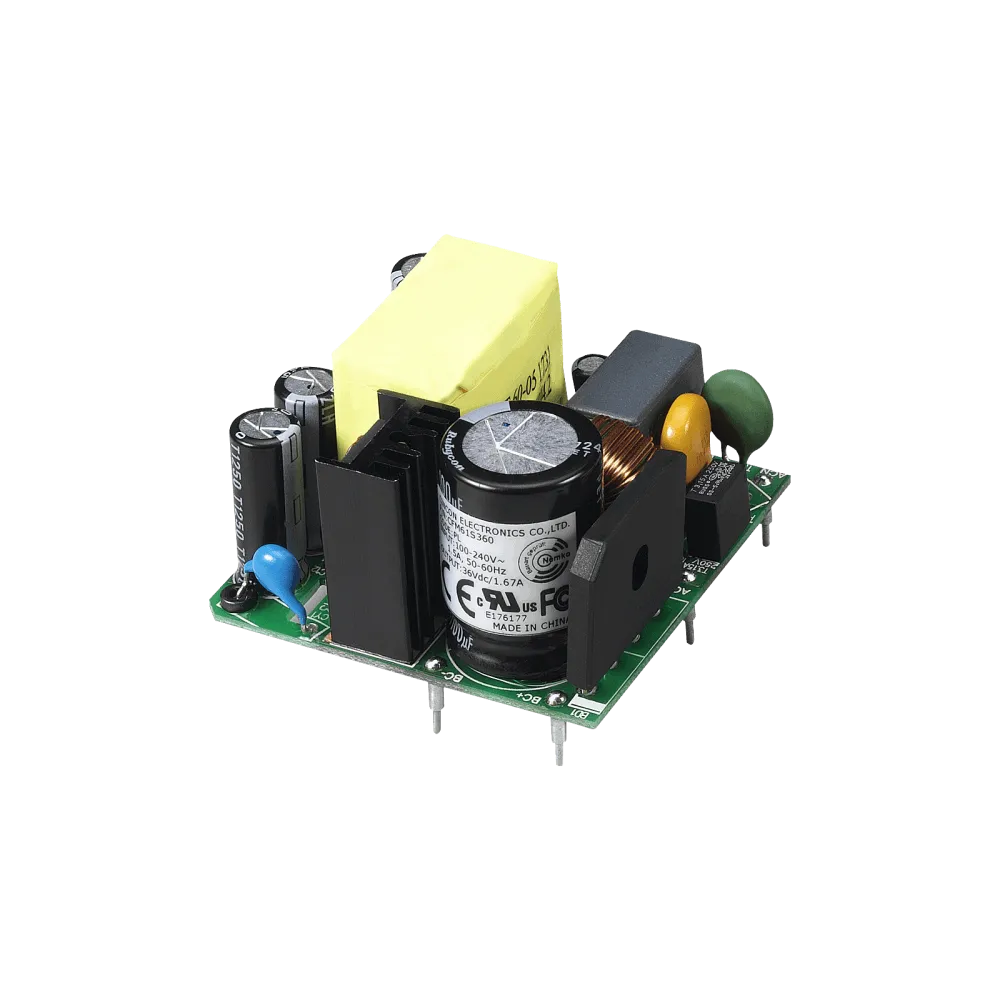

40W PCB Mount Power Supply 5V/8A, Peak Load
Technical data
- Universal Input 90…264Vac
- High Efficiency up to 90%
- Meets EN55032 Class B and CIRSS/FCC Class B
- Approved IEC62368-1, UL62368-1, EN62368-1
- Protections : Continuous Short Circuit and Over Voltage
- *Peak Load 2 times of rated current
- Class II
- Manufacturer: Cincon
*Peak load @110Vac: Lasting time < 10sec. with a maximum 10% duty cycle and must add external 100uF/400V Capacitor (BC+ & BC-).Peak Power @230Vac no component requested.
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer warranty | 3 years |
| Manufacturer | Cincon |
| Certificates | EN62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 90-264 V |
| Additional functions | Peak Power |
| Height | 34.2 mm |
| Width | 50.8 mm |
| Length | 50.8 mm |
| Application | ITE/AV |
| Power | 40 W |
| Efficiency | 86.00% |
