About the product

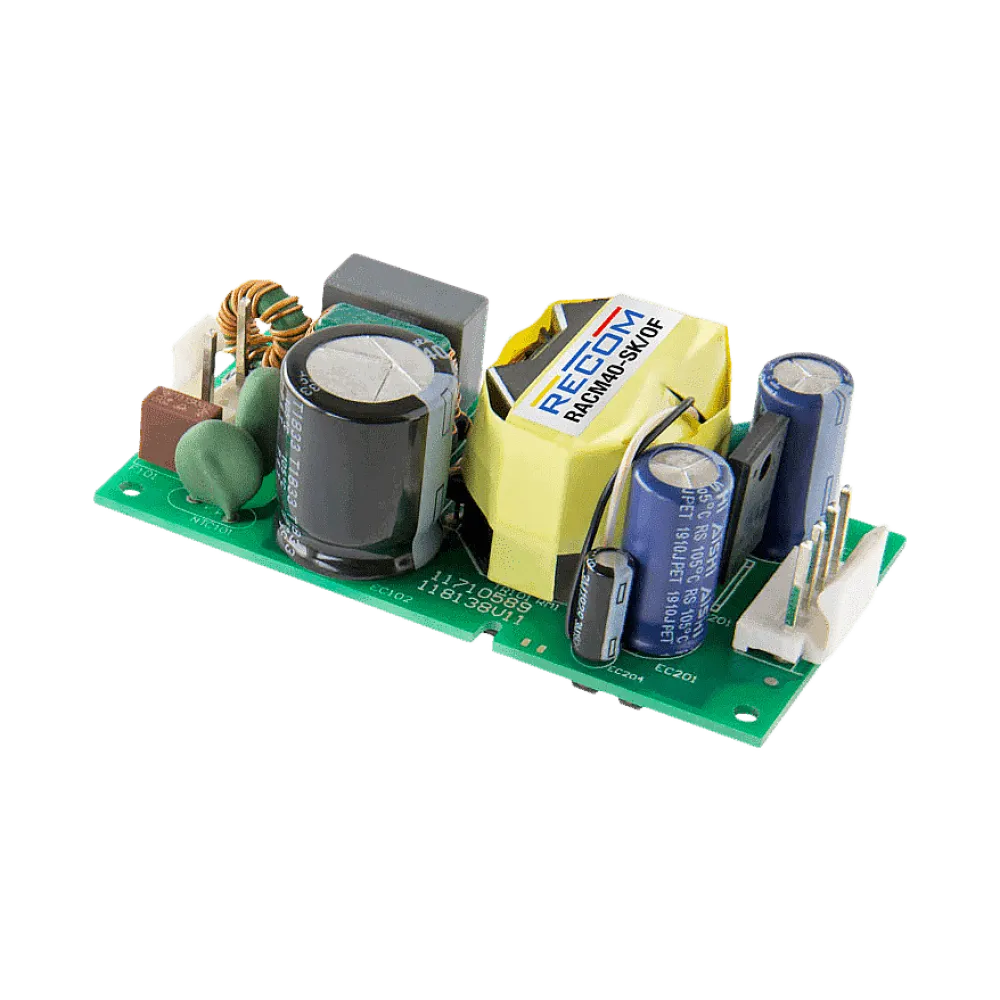

The ultra-compact versatile, industrial + household + medical grade AC/DC converter series RACM40-K/OF delivers 40 watts of output power from -40°C to +65°C with natural air convection only, and up to +85°C with derating or forced air cooling. With a clear focus on extended thermal performance for systems where space is limited, these 1.6" x 3" compact open card units are designed to gain highest overall efficiency levels over the full output load range from universal AC inputs. The RACM40-K/OF have ANSI/ AAMI/IEC 60601-1 medical safety and EN 60601-1-2 medical EMC certifications and offers 4kVac/1 min isolation, 2MOPP, and is designed to meet B and BF requirements. It is additionally certified to IEC/ EN 62368-1 (CB Report) and IEC61558-1/-2-16 for industrial applications and IEC/EN 60335-1 for household appliances. The robust built-in class B EMC filter has sufficient margin to allow either Class II or Class I PELV with grounded output installations.
Technical data
- 1.6"x3", open card units; optional 2"x3"
- 40W power from -40°C up to +65°C ambient
- Operating temp. up to +85°C with derating
- 4 kVac/1min reinforced isolation
- 2MOPP medical certified, B and BF compliant
- 5000m (medical/ITE) operating altitude
- Class B EMC filter built-in
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Recom |
| Manufacturer warranty | 3 years |
| Additional functions | OVC III |
| Height | 25.5 mm |
| Width | 40.6 mm |
| Length | 78.3 mm |
| Protection class | Class I, Class II |
| Application | Household, ITE/AV, Medical |
| Power | 40 W |
| Efficiency | 90.00% |
