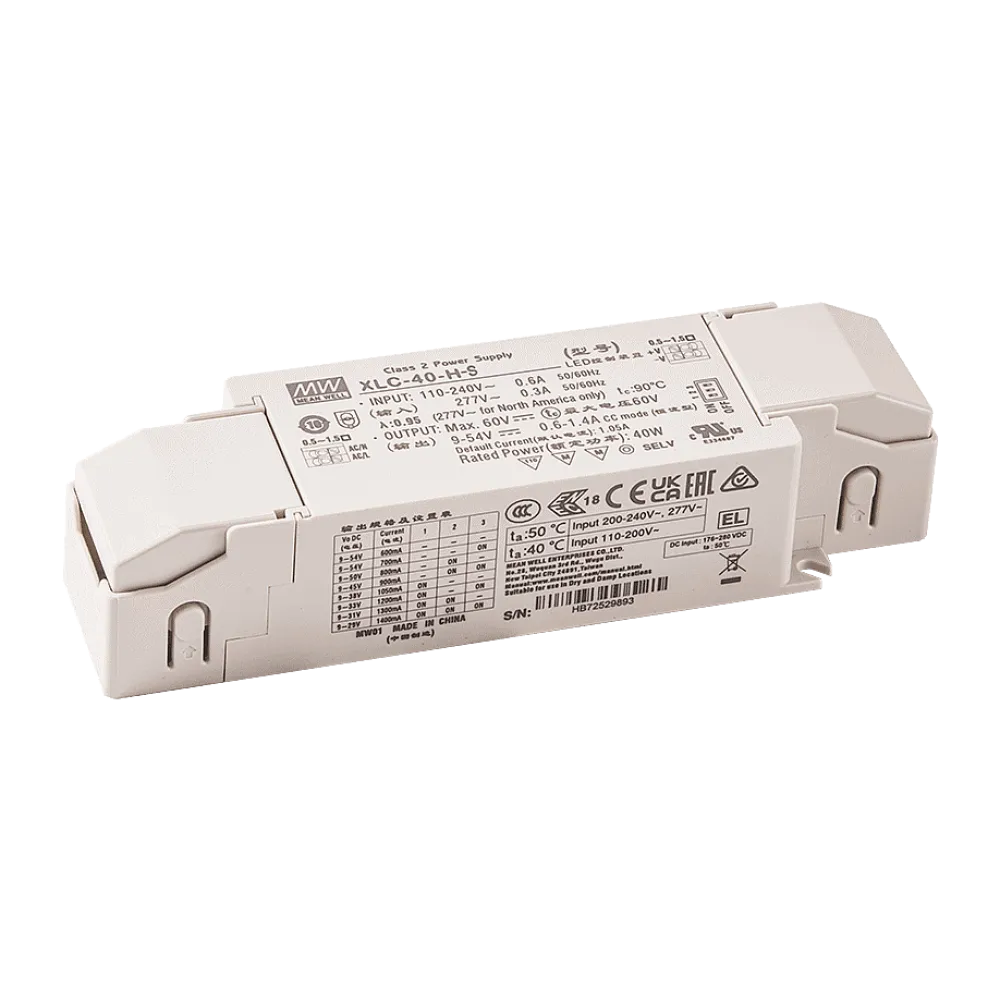

40W LED driver 600mA to 1400mA/9V…54V, DALI2, NFC, Independant

XLC-40 Series is a 40W constant current LED driver. It can operate from 110 to 305Vac and 176 to 280Vdc. Thanks to high efficiency up to 88%, it is able to operate for -25°C to 90°C case temperature under free air convection. XLC-40 is designed based on latest safety regulations with DALI and AC Push dimming. The output current is selectable via NFC which provides design flexibility for LED Lighting applications.

Independent type

Technical data

• Constant power mode output
• Multiple output current, selectable via NFC
• DALI 2.0 and AC Push dimming
• Minimum dimming level 0.1%
• Plastic housing with class II/2 and PFC design
• Flicker free, complying with IEEE1789/ErP
• Standby power consumption <0.5W
• Meet emergency lighting (EL) application
• 5 years warranty
