About the product

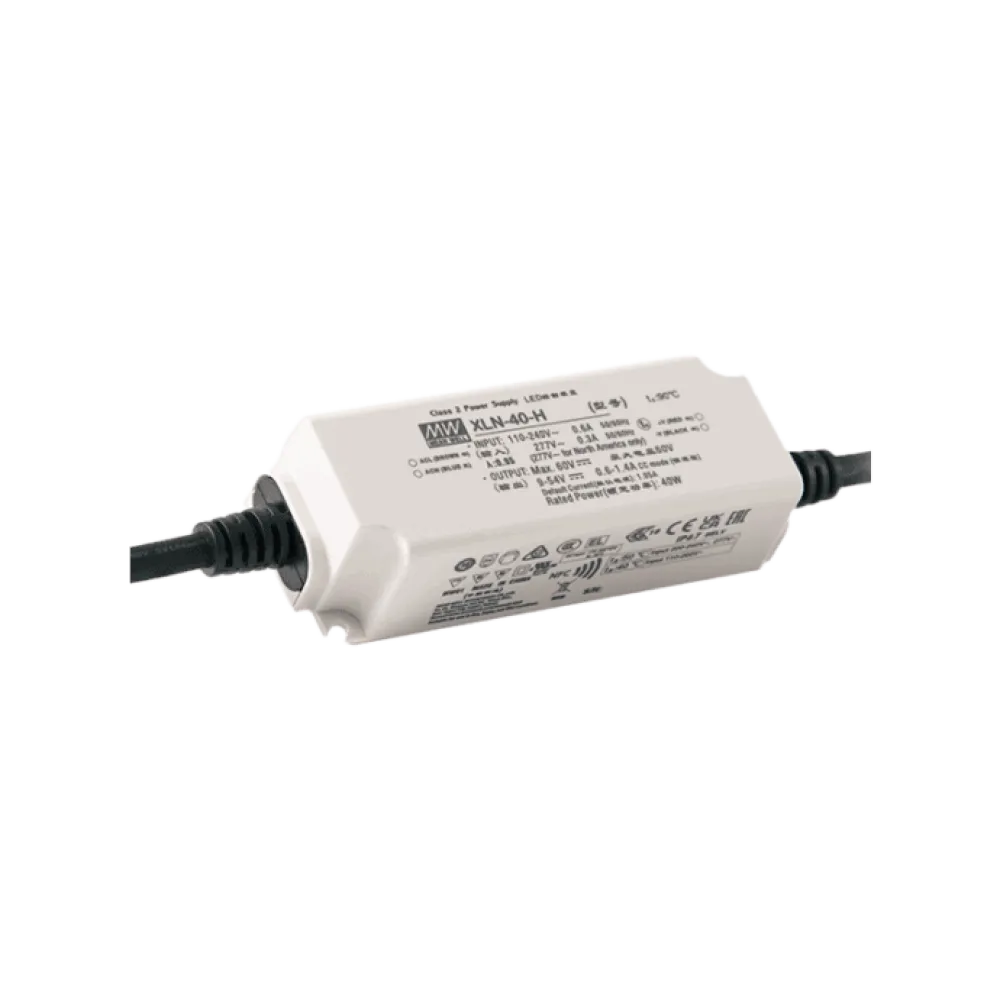

XLN-40-H is a flexible LED driver with constant current output for the direct operation of LED lighting applications. The output current of the IP67 LED converter can be programmed using a smartphone via NFC.
Technical data
- Fully moulded plastic housing with IP67 protection
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Product specifications
| Power | 40 W |
| Output current | 600-1400 mA |
| Efficiency | 88.00% |
| Product series | XLN |
| Input voltage range (VAC) | 110-305 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power, EL mark |
| Connection | Cable |
| IP protection | IP67 |
| Height | 32 mm |
| Width | 44 mm |
| Length | 114 mm |
| Application | Single color |
| Current setting | NFC |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 9-54 V |
