About the product

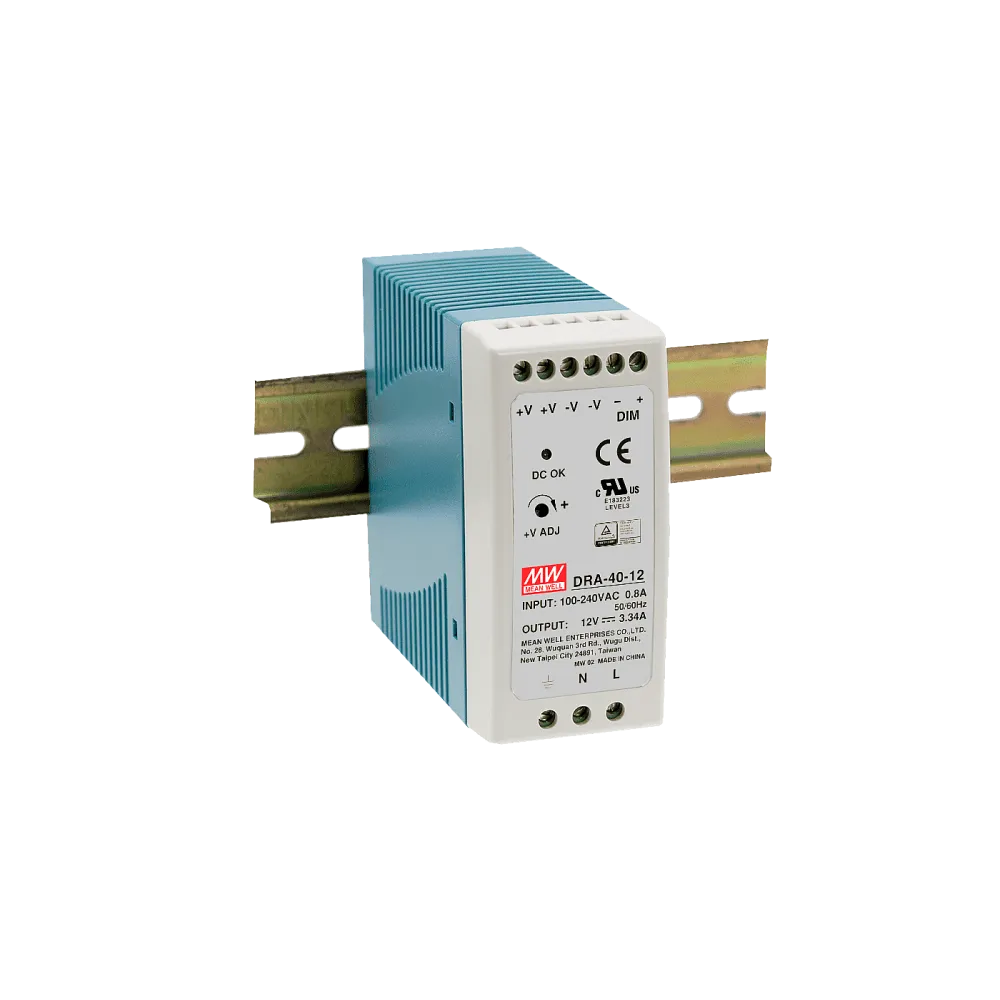

40W DIN Rail Power Supply 12V/3.33A
Technical data
- Universal AC input 90-264Vac
- Can be installed on DIN Rail TS-35/7.5/15
- Output voltage adjustable through internal potentiometer
- Constant current level can be adjusted through 1-10Vdc / PWM signal or Resistance
- Operating temperature -30°C to +70°C
- LED Indication for DC OK
- Dimension 40 x 90 x 100mm (W x H x D)
- 3 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Product series | DRA |
| Control | Resistor, 1-10V, PWM control signal |
| Control signals | Programmable output current |
| Overload characteristics | Constant current limiting |
| Certificates | EN62368-1 / ITE, LPS, UL62368-1 / ITE |
| Depth | 100 mm |
| Height | 90 mm |
| Width | 40 mm |
| Input voltage range (VAC) | 90-264 V |
| Output current | 3.34 A |
| Power | 40 W |
| Efficiency | 85.00% |
