40W DALI2 DT6, AC-PUSH, linear constant current LED driver, NFC, NON SELV

Delivery at your place between May 29 and Jul 3 2025

Add to cart

About the product

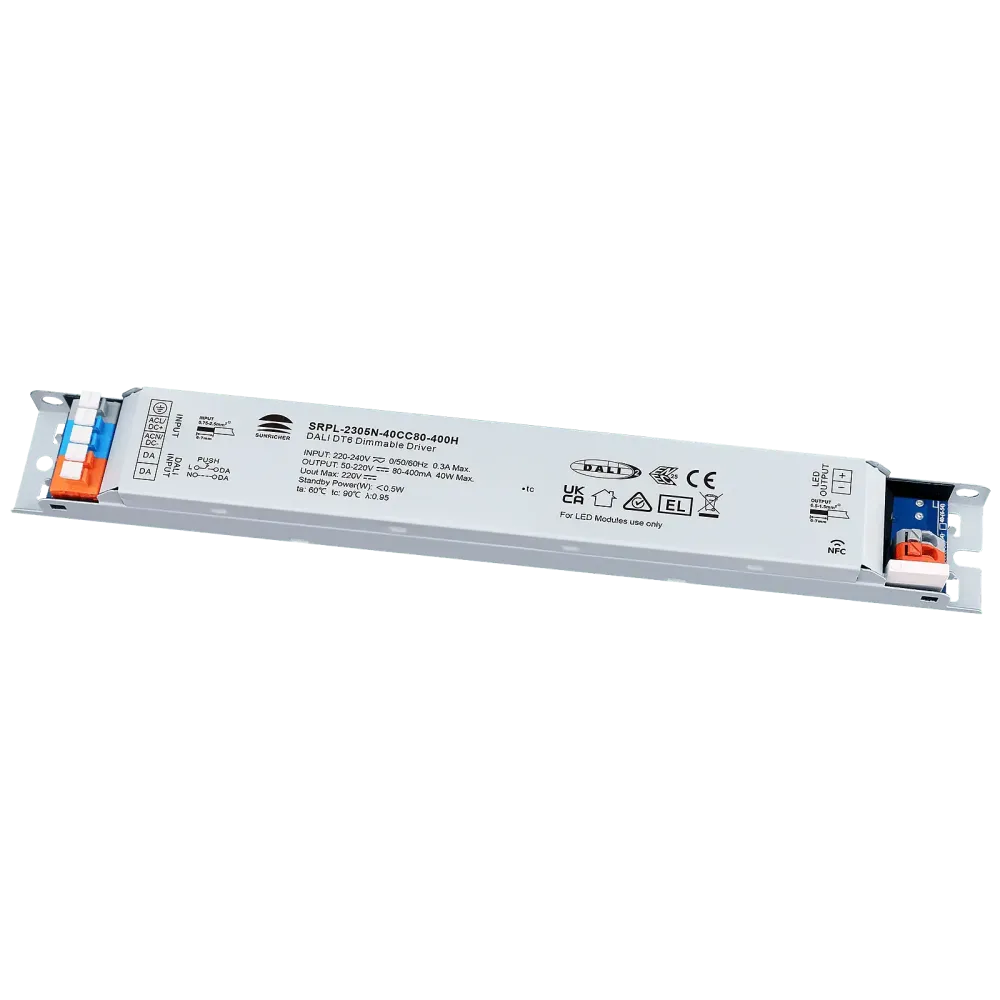

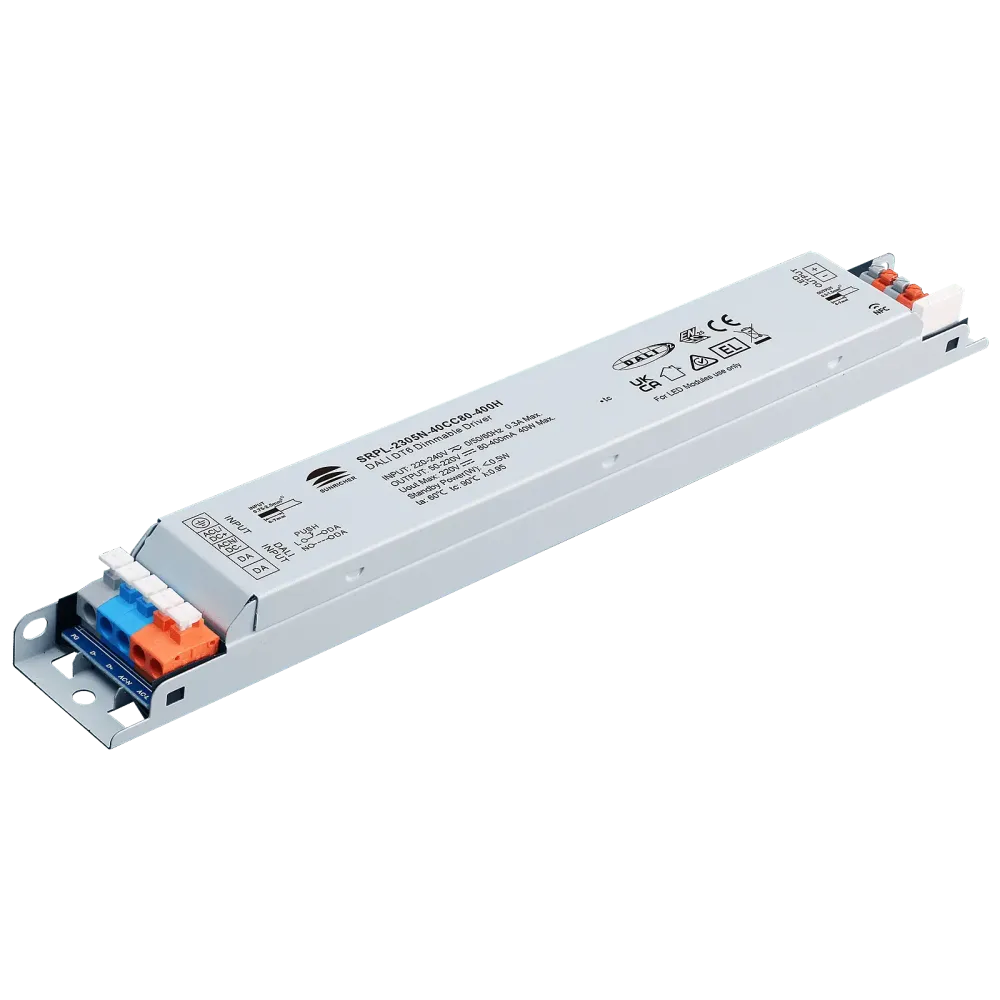

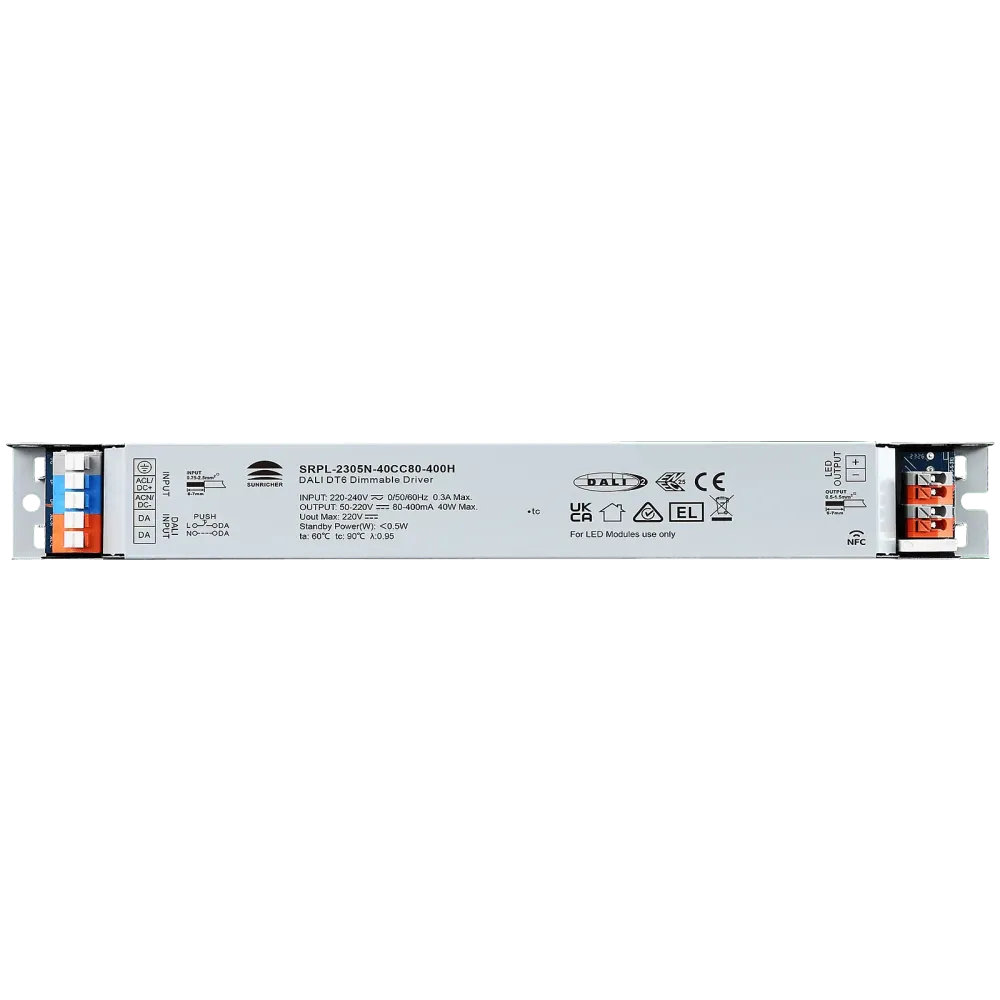

SRPL-2305N-40CC80-400H is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI2 DT6. The output current can be set between 80 and 400mA via NFC.

In a slim linear 30 x 21mm aluminum housing, ideal for profiles and linear luminaires.

Control

DALI2 DT6, AC-PUSH

Application

Single Color

Current setting

Dimming range

The load-dependent dimming range is 0.1% to 100%

Dimming method: Amplitudes/CCR

Technical data

DALI2 DT6 and AC-PUSH dimmable 1-channel NFC power supply unit
1 channel 80~400mA constant current output, selectable via NFC program tool
In accordance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
Built-in DALI2 interface, DALI DT6 device
Setting the DALI address/group/scene via the NFC program tool
Dimmable LED driver. Max. output power 40W
AC-PUSH dimmable
Output voltage range: 50-220VDC
NON SELV
High power factor and efficiency
For switching and dimming LED lighting fixtures
Amplitude dimming, smooth and deep dimming down to 0.01%
Compatible with universal DALI masters that support DT6 commands
Protection class IP20
5 year guarantee
Dimensions: 245 x 30 x 21mm

DOWNLOAD SR NFC TOOL

ANDROID APPLE

Product specifications

Manufacturer	Sunricher
Connection	Spring clamp
Manufacturer's warranty	5 years
IP protection	IP20
Length	245 mm
Current setting	NFC
Control	DALI, AC Push Dimming
Width	30 mm
Power	40 W
Channels	1
Application	Single color
Height	21 mm
Dimming type	Current control
