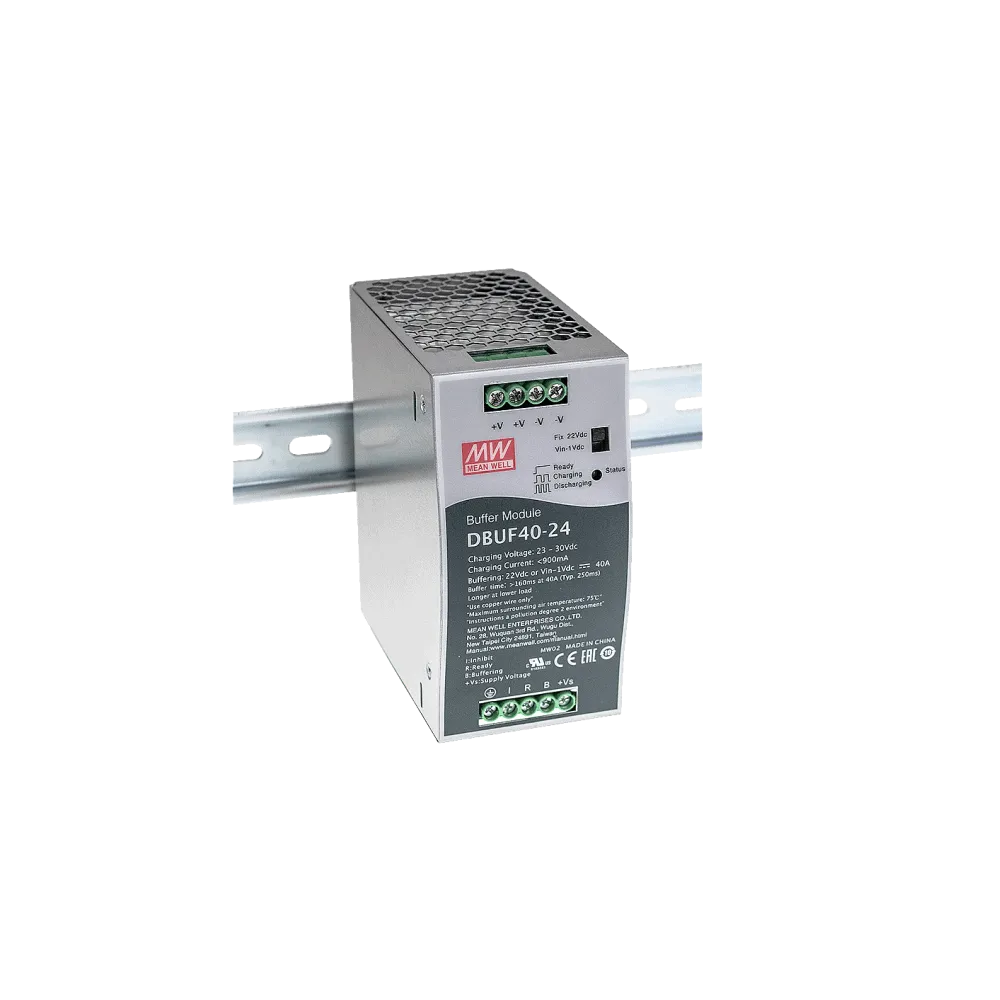

40A Buffer module for 24V systems

DBUF40-24 is a buffer module which can be used to extend the power failure bridging time after a power failure. Electrolytic capacitors are used for energy storage.

Technical data

• Buffer module to extend the power failure bridging time
• Suitable for 24Vdc systems with maximum current of 40A
• Typical buffer time of 250mS at 22V / 40A
• Supports parallel connection to extend buffering time
• Reverse polarity protection by MOSFET
• Control and status signals: Ready, Buffering, Inhibit
• LED indicator for Ready, Buffering
• Dimension 63 x 125.2x 114.9mm (W x H x D)
• 3 years warranty
