About the product

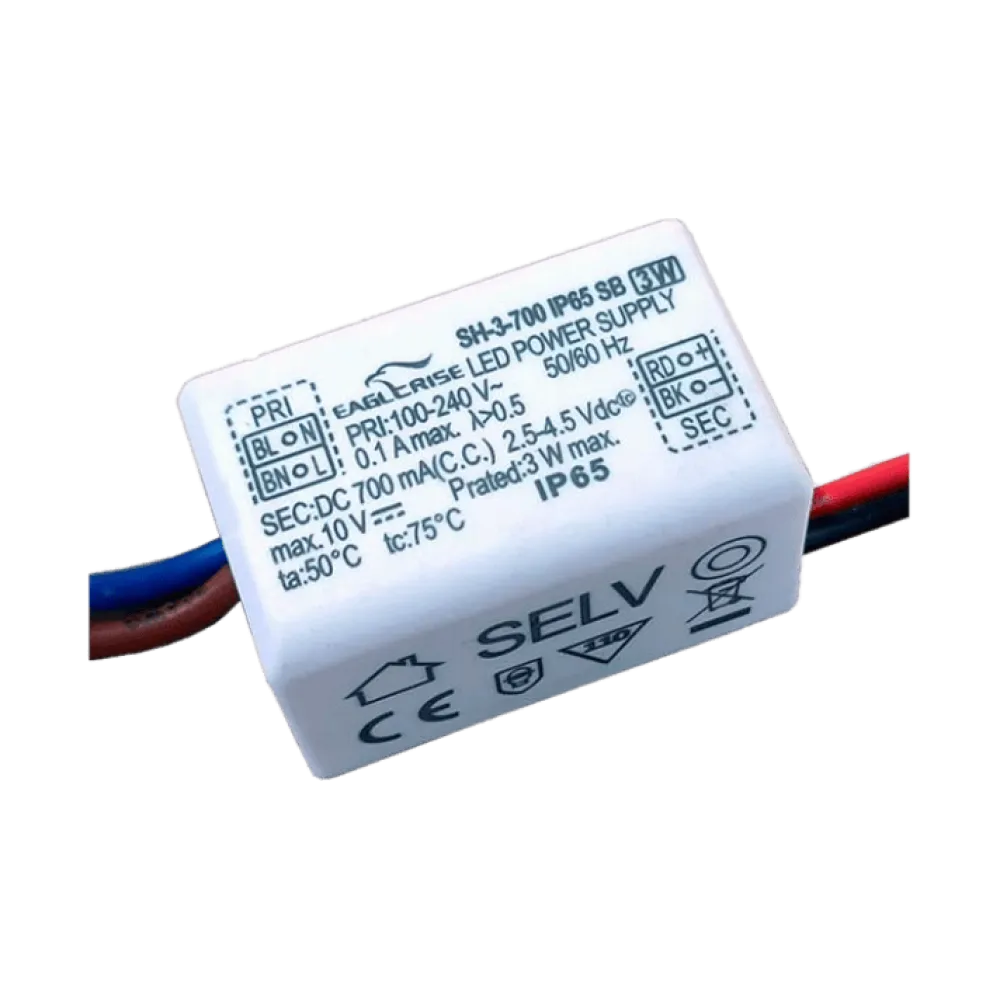

SH-3-700 IP65 SB is an 3W constant current LED driver with 700mA output. The class II design (without FG) accepts input from 90 to 264Vac. With it’s very compact design it is easy to integrate in LED spots and downlights.
Product specifications
| Power | 3 W |
| Output current | 700 mA |
| Manufacturer | Eaglerise |
| Manufacturer warranty | 5 years |
| Connection | Cable |
| IP protection | IP65 |
| Height | 21 mm |
| Width | 23 mm |
| Length | 37 mm |
| Application | Single color |
| Channels | 1 |
| Control | Non-dimmable |
| Output voltage range (VDC) | 2.5-4.5 V |
