About the product

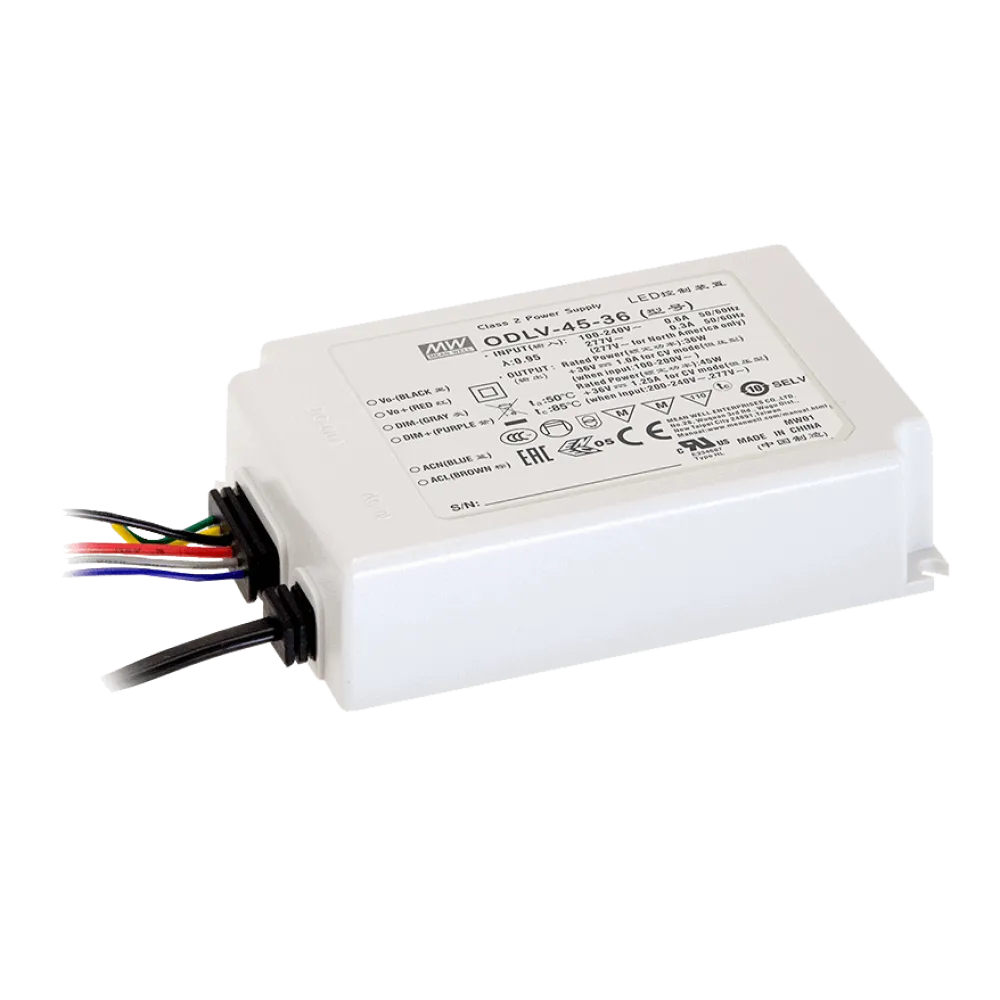

Mean Well ODLV-45 series is a 45W LED driver featuring the constant voltage mode PWM style output design. The IP67 ingress protection level allows this series to fit indoor wet applications.
Technical data
- Universal AC Input 90 to 295Vac
- Constant Voltage Design
- Built-in 2in1 dimming function (0-10V, PWM)
- Dimming by PWM output
- IP67 rating
- Class II Power Unit, no FG
- No load power consumption <0.5W
- Dimension 111 x 77 x 28.5mm (L x W x H)
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 3 years |
| Product series | ODLV |
| Input voltage range (VAC) | 100-240 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 28.5 mm |
| Width | 77 mm |
| Length | 111 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | 0-10V, 1-10V, PWM control signal |
| Channels | 1 |
| Output current | 3 mA |
| Power | 36 W |
| Manufacturer | MEAN WELL |
