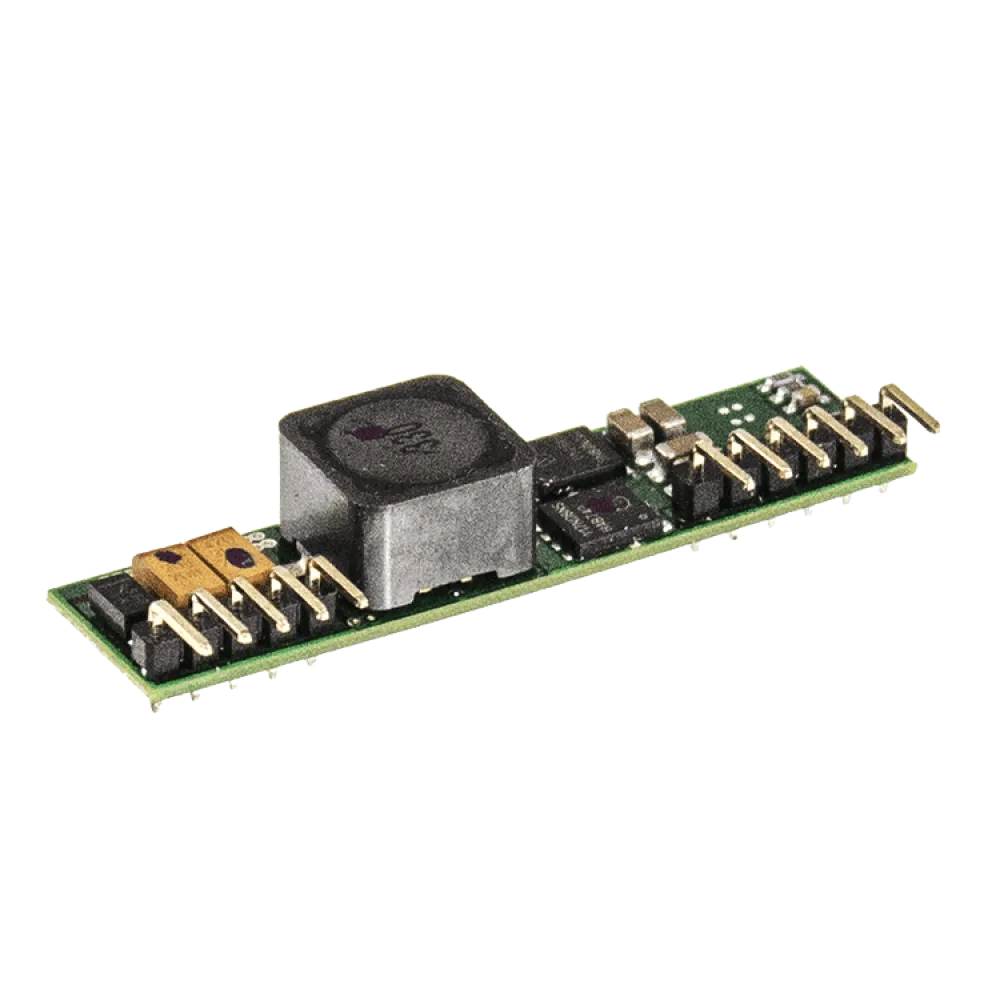

36W DC/DC-Converter, Input 20…53V, Output 15V/2.4A
Technical data
- Economical open frame design
- Wide input range
- High efficiency up to 96%
- Remote ON/OFF control
- Comact size: 2x 0.512x 0.433 SIP package
- Protections : short circuit/Overload/Overvoltage
- -30°C+85°C wide working temperature
- Cooling by free air convection
- Comply to EN55032 Class A without additional components
- Trimming output optional
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 15 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV |
| Height | 10.7 mm |
| Width | 13 mm |
| Length | 50.8 mm |
| Package / case | Open frame |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Unregulated |
| I/O isolation | Non isolated |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 20-53 V |
| Nominal input voltage (VDC) | 24-48 V |
| Output current | 2400 mA |
| Power | 36 W |
| Manufacturer warranty | 3 years |
