360W medical Power Supply 15Vdc/24A

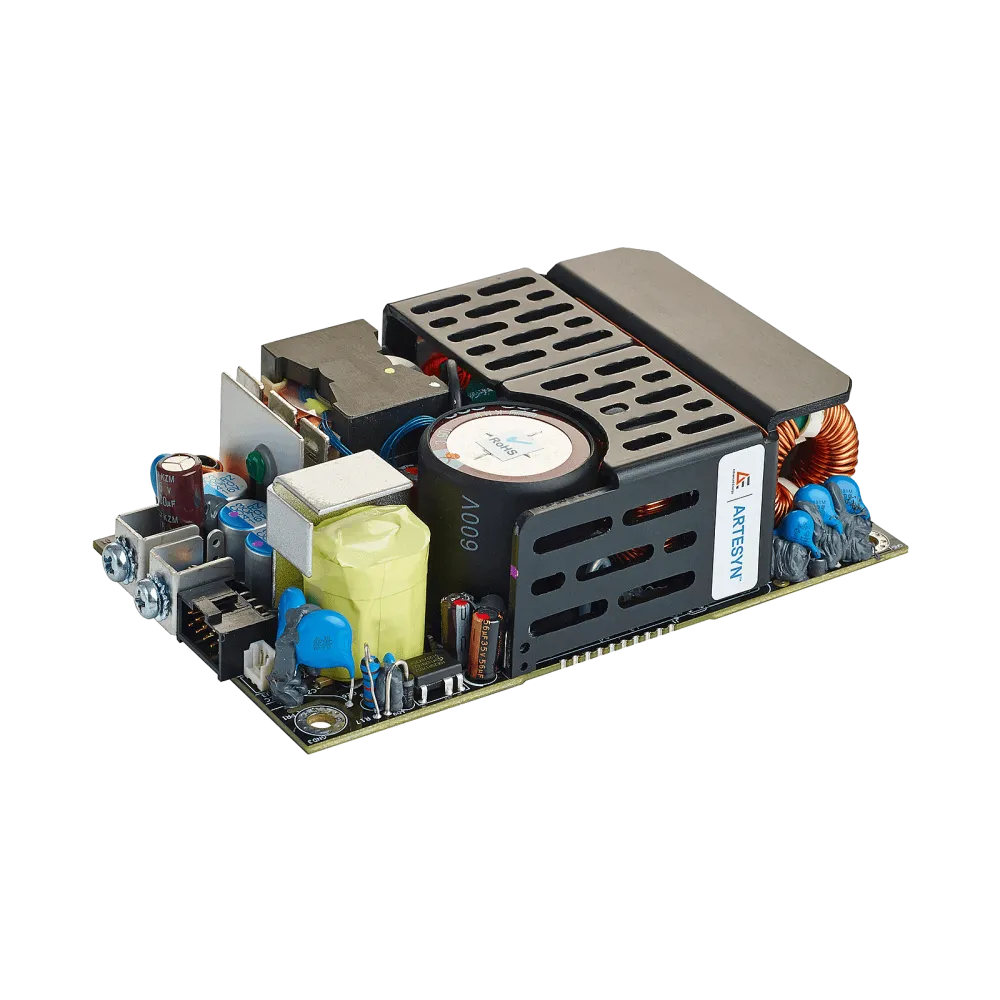

Advanced Energy’s Artesyn CNS650-MU Series of single output open frame AC/DC Power Supplies are offered in 12V, 24V or 48Vdc outputs with +15% Trim range. Each Power Supply comes with a 12Vdc fan output and 5Vdc standby. All models feature ITE Industrial and Medical safety approvals and accept a universal input of 90V…264Vac. Depending on operating conditions, its 4"x 6"x 1.54" compact and high density "U-Channel" Construction delivers up to 400Watt of output power with free air convection cooling and up to 650Watt with 400 LFM of forced air. These AC/DC converters are ideal for industrial systems as well as for Medical Applications.

Technical data

• 360Watt Powe supply with Medical and ITE safeties
• Suitable for BF Type applications
• Active power factor correction
• Dual AC fuses
• 3"x 5" footprint
• PMBus commands
• Remote sense
• Power fail
• Main output adjustable
• Level B conducted EMI – Class I or Class II inputs
• Over voltage protection
• Over load protection
• Over temperature protection
• 12Vdc fan output
• LPX200 enclosure kit available
• 5Vdc Standby output
• Remote Inhibit
• Warranty 3 Years
• Manufacturer Artesyn
