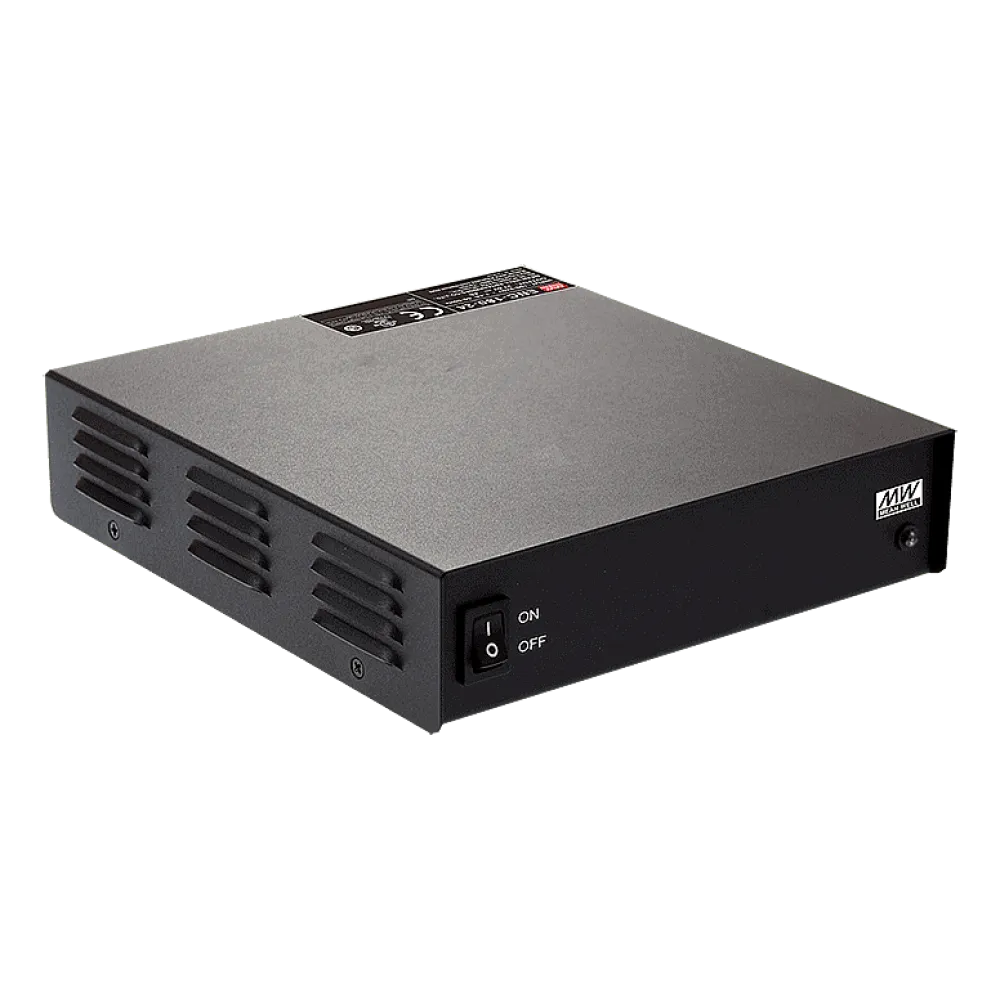

345W Battery Charger for 48V Lead-Acid and LI-ION Batteries

ENC-360 is a single output 345W AC/DC desktop type charger with 3 stage charging curve. In addition to the embedded pre-defined charging curves, the default curve is programmable and thus able to accommodate different types of batteries, such as lead-acid batteries (gel, flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). With the rugged mechanical design along with the high efficiency circuitry, ENC-360 operates for the ambient temperature range -30~+70 under free air convection

Technical data

• Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
• Universal AC input 90 to 264Vac
• 3 stage programmable charging curve (Programmer SBP-001 required)
• Metal housing
• Fanless design, cooling by free air convection
• Battery reverse polarity protection
• Temperature compensation function
• Working temperature range -30°C to +70°C
• Dimension 192 x 178 x 45.5mm (L x W x H)
• 3 years warranty
• Manufacturer Mean Well
