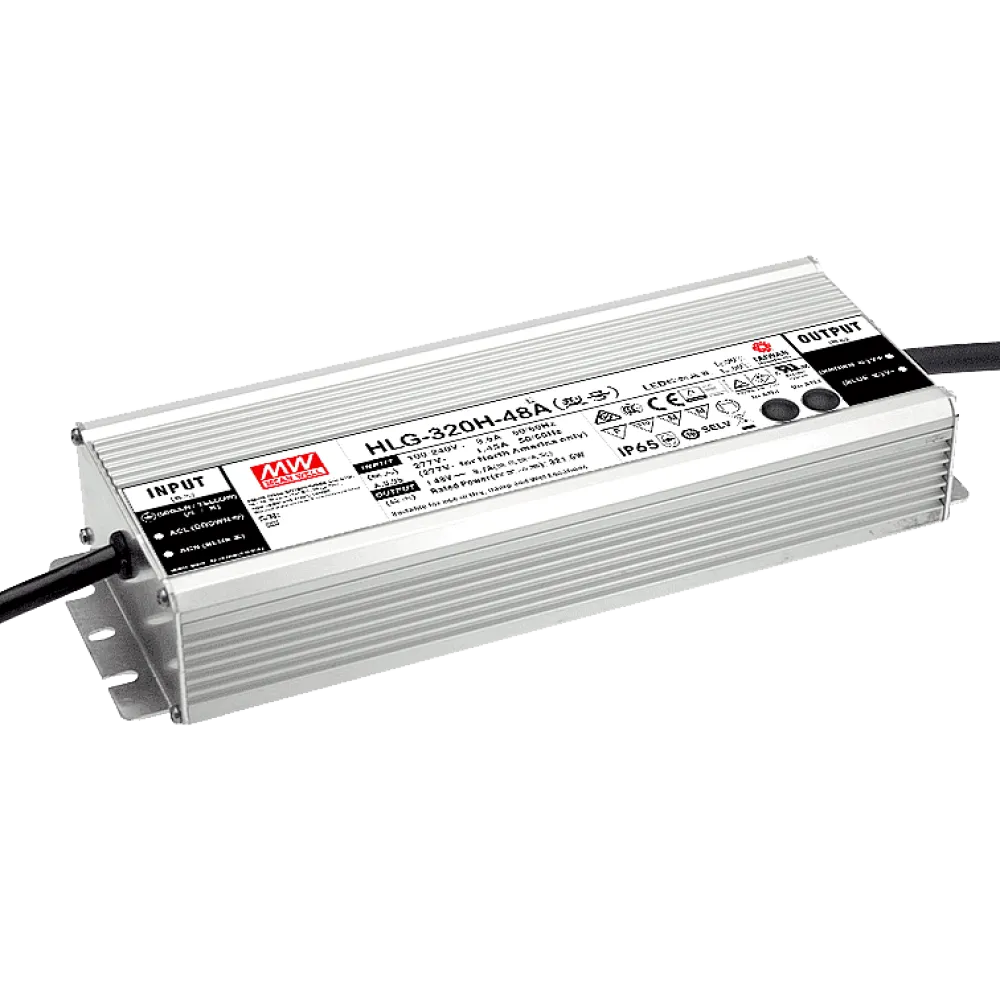

320W LED Driver CV+CC 36V/8.9A

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

Universal AC input 90 to 305Vac
CC/CV circuit for constant voltage and constant current applications
Output voltage and constant current level can be adjusted through internal potentiometer
IP65 for indoor and outdoor installations
High reliable driver with long lifetime
Fully encapsulated metal housing
Suitable for dry, damp, and wet location
Type HL LED driver for use in class I, division 2 hazardous location luminaires
Meet 4kV surge immunity level (IEC61000-4-5)
Dimension 252 x 90 x 43.8mm (L x W x H)
7 years warranty
Manufacturer MEAN WELL

Output voltage (VDC)	36 V
Manufacturer warranty	7 years
Product series	HLG
Input voltage range (VAC)	100-277 V
Additional functions	Current/voltage setting on unit
Connection	Cable
IP protection	IP65
Height	43.8 mm
Width	90 mm
Length	252 mm
Application	Single color
Control	Non-dimmable
Channels	1
Output current	8.9 A
Power	320 W
Manufacturer	MEAN WELL

AC Connector 863
