About the product

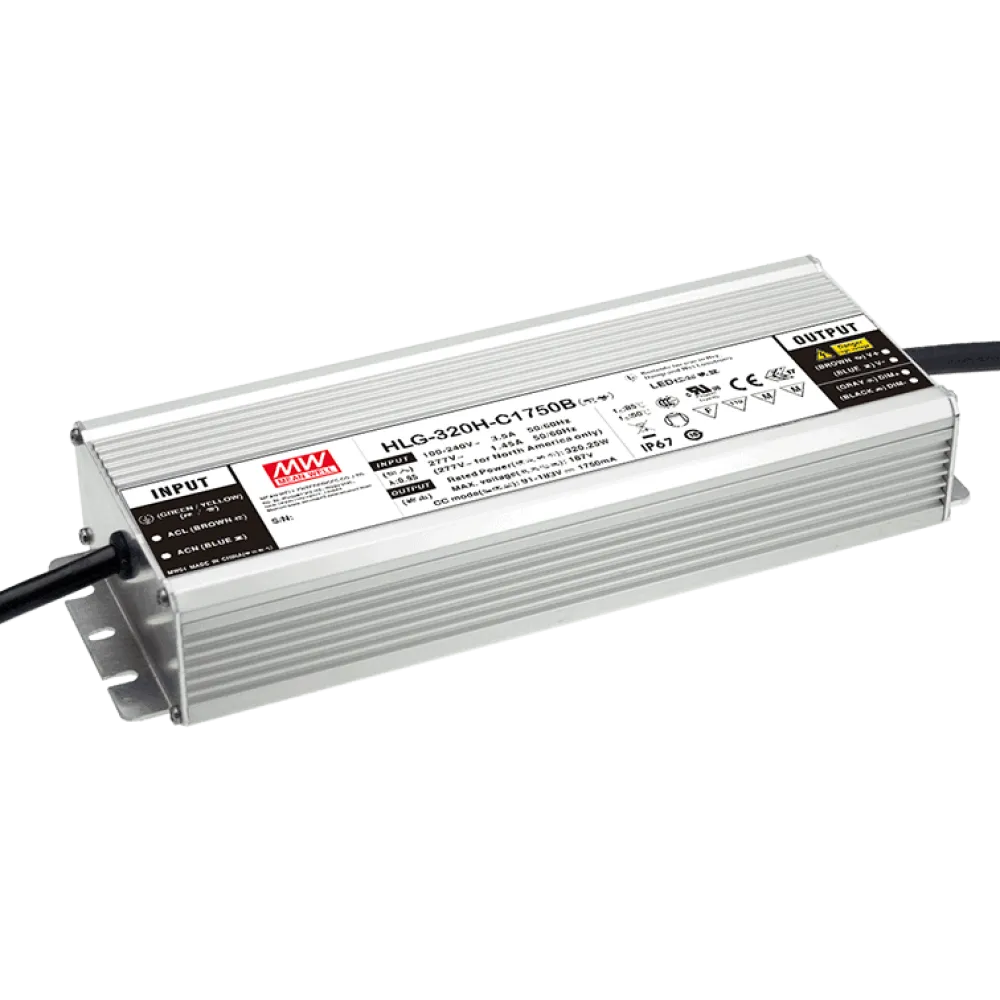

320W CC LED Driver 3500mA/46…91V, 3in1 Dimming
Technical data
- Universal AC input 90 to 305Vac
- Constant current LED driver with high output voltage
- Constant current level can be adjusted through internal potentiometer
- IP67 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Working temperature -40°C to +70°C
- meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 252 x 90 x 43.8mm (L x W x H)
- 7 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 320 W |
| Output voltage range (VDC) | 46-91 V |
| Output current | 3500 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 7 years |
| Connection | Cable |
| IP protection | IP67 |
| Height | 43.8 mm |
| Width | 90 mm |
| Length | 252 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Channels | 1 |
| Control | Resistor, 1-10V, PWM control signal |
| Product series | HLG-C |
