3192W Rack Mountable Rectifier and battery charger 24V/133A, CANBus

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

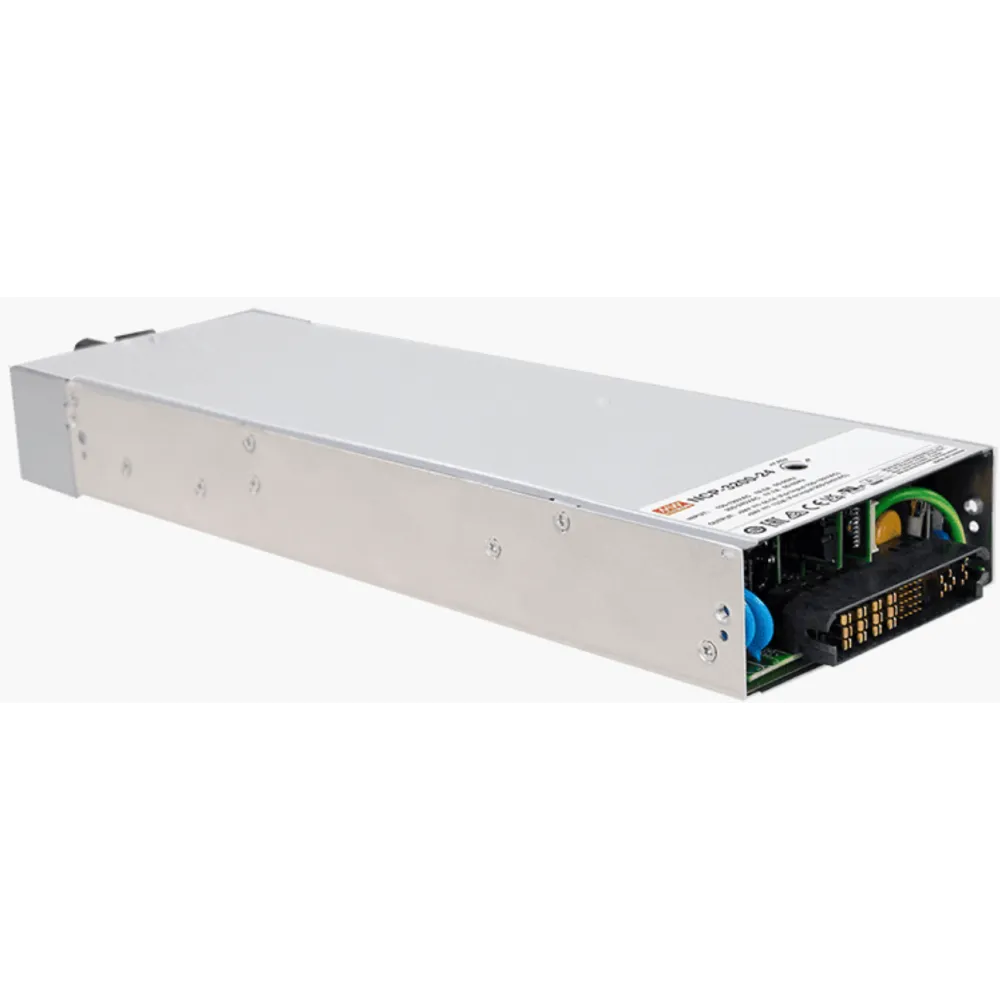

NCP-3200-24CAN is a 3.2kW front end power supply and battery charger for rack mounting. Installed in the DHP-1UT-B rack, up to 4 NCP-3200-24 can be operated in parallel per rack. Furthermore, up to 10 racks can be connected in parallel which allows a total power of 128kW. With the built-in hot swap function, redundant operation can also be implemented without difficulties. Version with CANBus Interface

High Performance Systems

Technical data

Universal AC input / Full Range
Power supply or charger mode selctable by CANBus or SBP-001
Built-in 2/3 stage charging curves and programmable curve
High efficiency up to 94.5%
Built-in programmable output voltage and output current
Built-in OR-ing FET or Diode, support hot swap (hot plug)
Active current sharing up to 10 rack shelves (DHP-1UT-B) and the maximum power supply that can be connected in parallel is 40 units
Built-in I2C interface, support CANBus protocol
Built-in intelligent fan speed control
Protections: Short circuit / Overload / Over voltage / Over temperature
Design refer to SEMI F47 standard specification

Product specifications

Product	Rack power supply
Manufacturer warranty	5 years
Manufacturer	MEAN WELL
Control	CANBus, Analog
Additional functions	5V DC auxiliary output, 12V DC auxiliary output, Charger
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Control signals	Programmable output current, Programmable output voltage, Remote ON/OFF, Remote sense
Power per rack	12800 W
Power per power supply	3192 W
Output voltage (VDC)	24 V
Output current	133 A
