About the product

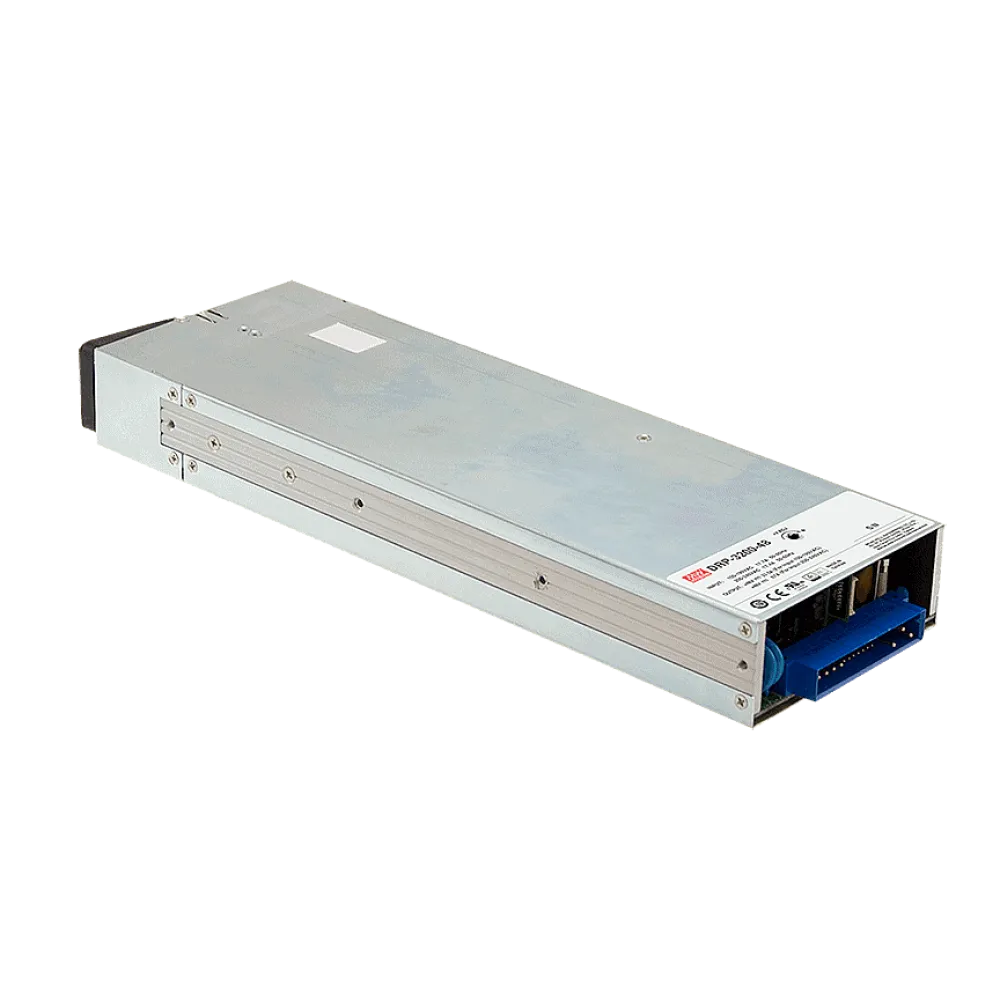

DRP-3200 is a 3.2kW rack mountable front end AC/DC power supply. Up to 4pcs can deliver up to 12800W in a single DHP-1UT rack. Beside of the higher power it can be also used as redundant power supply with the built-in hot swap functionality.
High Performance Systems
Technical data
- Universal AC input range from 90 to 264Vac
- High efficiency up to 94.5%
- For rack DHP-1UT
- Auxiliary voltage 5V/0.3A sowie 12V/0.8A
- Output voltage and constant current level programmable
- Built-in PMBus interface, Optional with CANBus protocol
- Built-in OR-ing FET, support hot swap (hot plug)
- Active Current Sharing up to 12800W for one rack
- DC OK signal, remote ON/OFF, alarm signals
- Forced air cooling by built-in DC fan
- UL/EN/IEC 62368-1 approved
- Operating temperature range -30°C bis +70°C (refer for Derating curve)
- Dimension 325 x 107 x 41mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Product | Rack power supply |
| Output current | 133 A |
| Manufacturer | MEAN WELL |
| Control | Analog, PMbus |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Status signals | AC OK signal, DC OK signal, fan failure, temperature alarm |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF, Remote sense |
| Power per rack | 12800 W |
| Power per power supply | 3192 W |
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 5 years |
