About the product

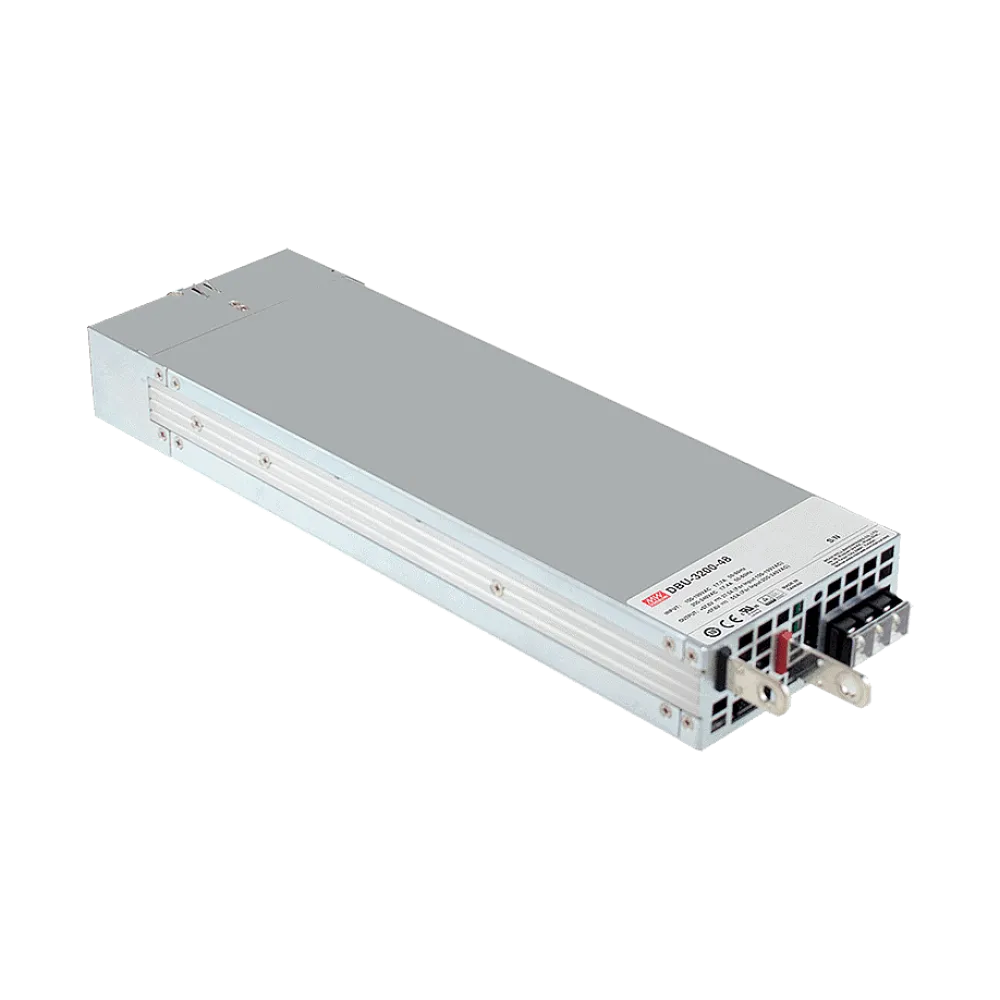

DBU-3200 is a 3200W single output AC/DC intelligent battery charger in 1U low profile with high power density. The charging curve is programmable by PMBus or by MEAN WELL software (SBP-001 accessory required).
Technical data
- Charger for lead-acid and Li Ion batteries
- I2C Interface, PMBus protocol
- Universal AC input 90 to 264Vac, with active PFC function
- Programmable 3 stage or 2 stage charging curve
- Current and voltage levels from each stage can be defined by software
- Built-in OR-ing FET
- Active current sharing up to 6400W (1+1)
- Built-in 5V/0.3A and 12V/0.8A auxiliary power
- Forced air cooling by built-in DC fan
- Working temperature range -30°C to +70°C
- Dimension 325.8 x 107 x 41mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Battery voltage (VDC) | 48 V |
| Charging current | 55 A |
| Power | 3168 W |
| Control | PMbus, Smart Charger Programmer |
| Product series | DBR |
| Manufacturer | MEAN WELL |
