About the product

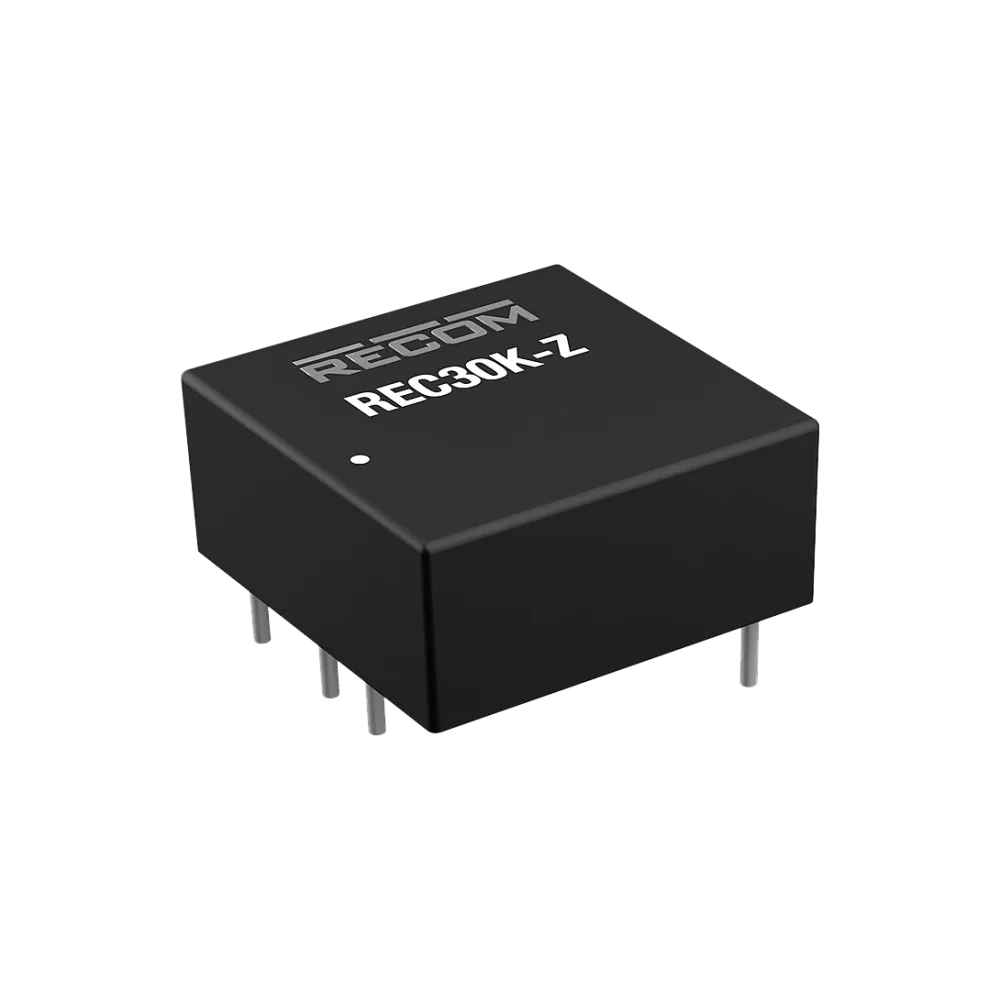

The REC30K series are high power density, wide input voltage range 30W DC/DC converters in an industry standard 1"x1" case size. Despite their small size, the REC30K converters are fully specified devices with output currents up to 6 amps, high efficiency, no minimum load, 2000VDC/1min isolation, tight regulation, and low ripple/noise figures. The outputs are also fully protected against short circuits, overcurrent, and overvoltage, and the single output version offers a ±10% trim range. These converters fit well in industrial applications where board space is at a premium.
Technical data
- Industry standard 30W 1"x1" package
- Derates to 105°C ambient temperature
- Wide 4:1 input ranges
- ON/OFF control pin, UVLO, SCP
- 3 year warranty
Product specifications
| Output voltage (VDC) | 12 V |
| Temperature range | -40°C to 105°C |
| Manufacturer | Recom |
| Application | ITE/AV |
| Height | 10.2 mm |
| Width | 25.4 mm |
| Length | 25.4 mm |
| Package / case | 1x1 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 2000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 9-36 V |
| Nominal input voltage (VDC) | 12-24 V |
| Output current | 2500 mA |
| Power | 30 W |
| Efficiency | 88.00% |
