30kW 3-Phase Power Supply 230V/130A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

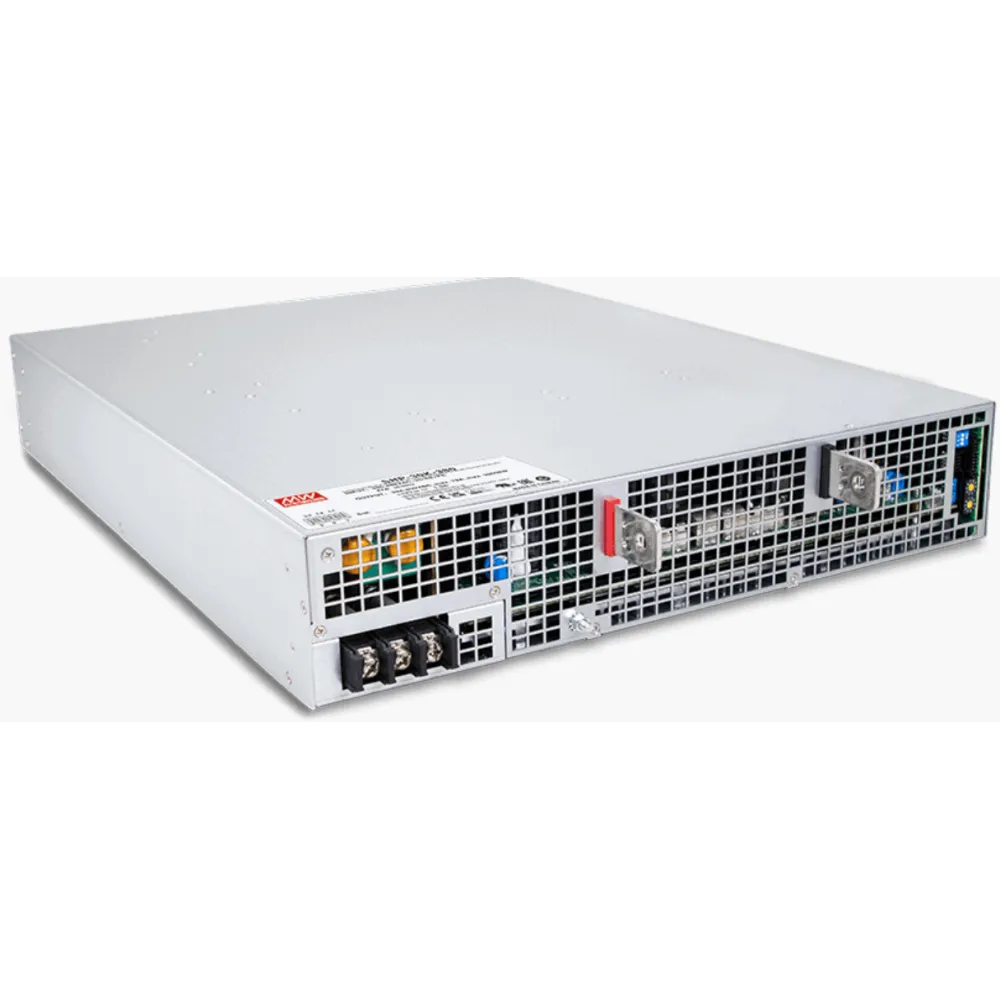

SHP-30K-230 is a digital 30kW power supply unit with 3-phase input. The power supply can be operated in the 3-phase network without neutral conductor. Numerous additional functions such as programmable output, remote ON/OFF, auxiliary voltages, CANBus interface facilitate integration into the overall system.

The built-in currrent sharing function allows to connect up to 12 SHP-30K in parallel to get a higher power.

Technical data

Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
Remote On/Off functions integrated
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 50 – 120% by external control signal
Output current can be trimmed between 1 – 100% by external control signal
Current sharing with up to 12 units up to 285kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
CANBus interface for monitoring and control integrated
Air cooling with integrated speed controlled DC fan
Operating temperature range from -30°C to +70°C
Dimensions 540 x 424 x 83.5mm (L x W x H)

Product specifications

Output voltage (VDC)	230 V
Manufacturer warranty	5 years
Manufacturer	MEAN WELL
Control signals	Programmable output current, Programmable output voltage, Remote ON/OFF
Status signals	AC OK signal, DC OK signal, fan failure
Additional functions	CANBus, 12V DC auxiliary output, Parallel connectable
Application	ITE/AV
Height	83.5 mm
Width	424 mm
Length	540 mm
Input voltage range (VAC)	340-530 V
Panel power	30000 W
Efficiency	96.00%
