About the product

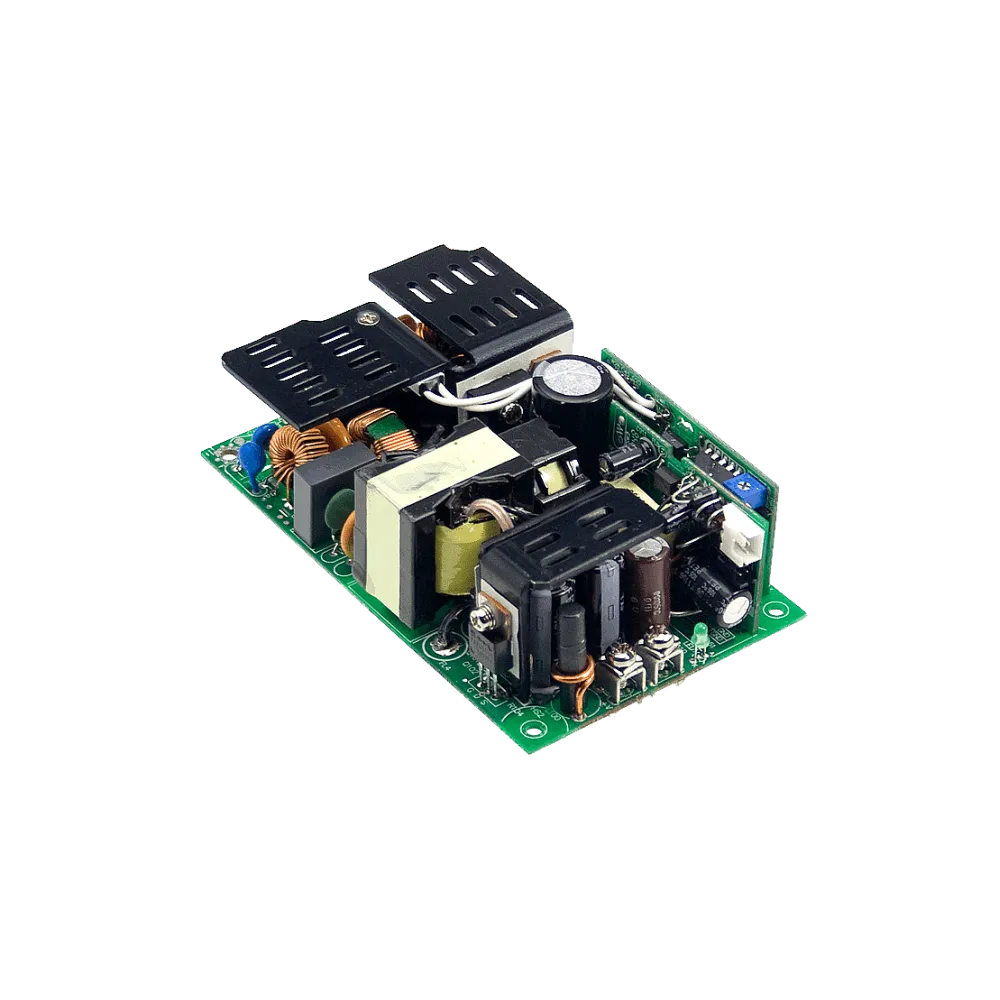

300W Open Frame Power Supply 48V/6.25A
Technical data
- Universal AC input 90 to 264Vac
- No load power consumption <0.5W
- 200W with free air convection
- 300W with 20.5CFM forced air cooling
- Built-In active PFC >0.93
- Output signal for power o.k.
- Auxiliary output 12V/0.3A
- Protection: short circuit, overload, overvoltage and overtemperature
- Dimension 127 x 76.2 x 35mm (L x W x D)
Product specifications
| Output voltage (VDC) | 48 V |
| Product series | EPP |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Status signals | Power good signal |
| Control signals | Remote ON/OFF, Remote sense |
| Height | 35 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Application | ITE/AV |
| Power | 300 W |
| Efficiency | 93.00% |
