About the product

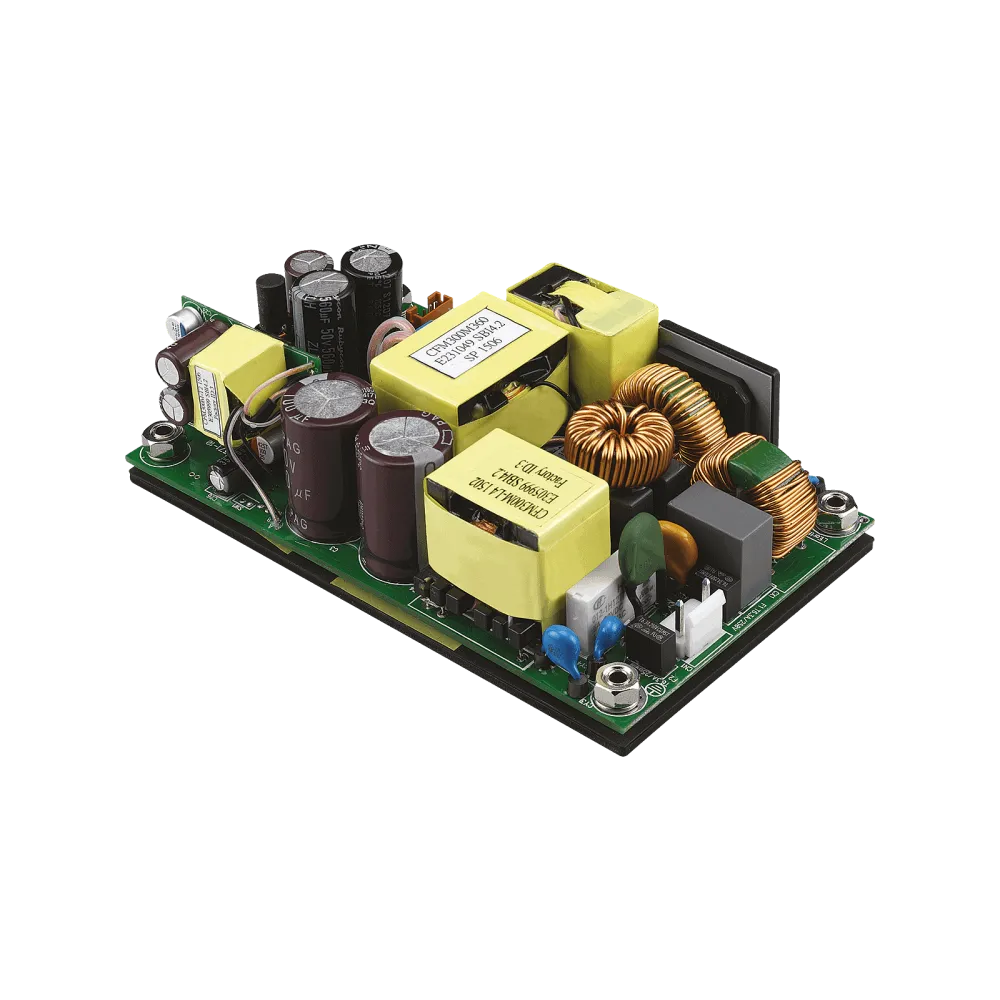

The Cincon CFM300M series features a wide universal input voltage range of 90~264 Vac and is available in single output voltages of 12, 24, 36, and 48 Vdc.
Technical data
- Universal AC input 90 to 264Vac
- Built-In active PFC according to EN61000-3-2
- No load power consumption <0.3W
- Efficiency 94%
- EMC meets EN55011 and EN55022 class B
- Meets 2x MOPP
- Protection: Short circuit and Overtemperature
- Medical Safety approved UL/IEC/EN60601-1
- Power good & Power fail Signal
- Auxiliary Output +5Vdc/1A
- Fan Output 12Vdc/0.5A
- Remote Voltage Sense
- Dimension 127.0 x 76.2 x 35.12mm (L x B x D)
Product specifications
| Output voltage (VDC) | 36 V |
| Product series | CFM |
| Manufacturer | Cincon |
| Manufacturer warranty | 3 years |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Status signals | DC OK signal |
| Control signals | Remote ON/OFF, Remote sense |
| Height | 35 mm |
| Width | 76 mm |
| Length | 127 mm |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Power | 300 W |
| Efficiency | 93.00% |
