About the product

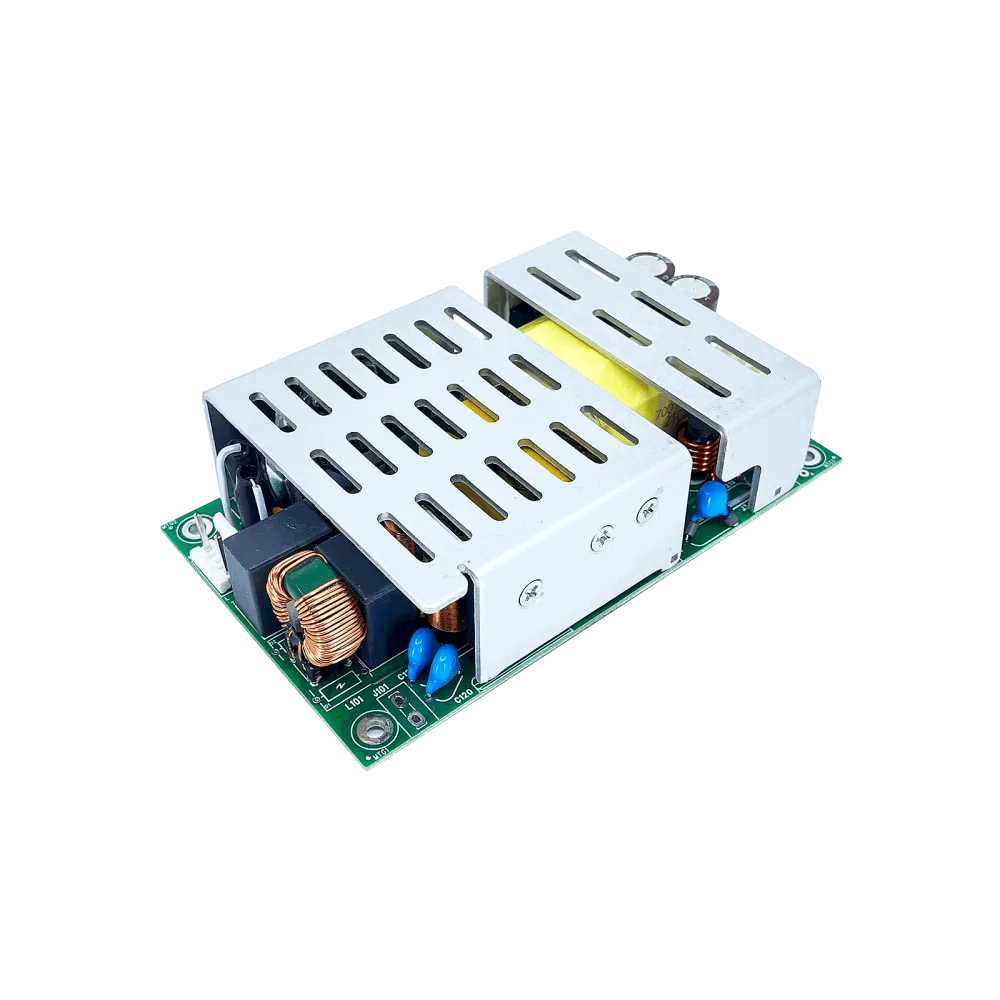

SLB300 Single Output Power Supplies from SL Power offers a 300Watt maximum power rating, 7 Voltage Outputs from 12V to 56Vdc range, and up to 22.5A output current rating.
Technical data
- 3’’x 5’’x 1.4’’ package
- Universal Input 80…264Vac
- 300Watt with 100LFM Air
- 200W Convection Cooled
- EN/CSA/IEC/UL62368-1 Approved
- Approved to EN/CSA/IEC/UL60601-1-1, 3rd Ed.
- Fits 1U Applications
- Class B Conducted and Radiated EMI
- 5000m o.s.l.
- RoHS Compliant
- 3 Years Warranty
- SL Power Brand
Product specifications
| Output voltage (VDC) | 18 V |
| Manufacturer | SL Power |
| Manufacturer warranty | 3 years |
| Additional functions | Class II |
| Height | 35.56 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class II |
| Standard size | 3 x 5 inches |
| Application | ITE/AV, Medical |
| Power | 300 W |
| Efficiency | 90.00% |
Data sheets
