About the product

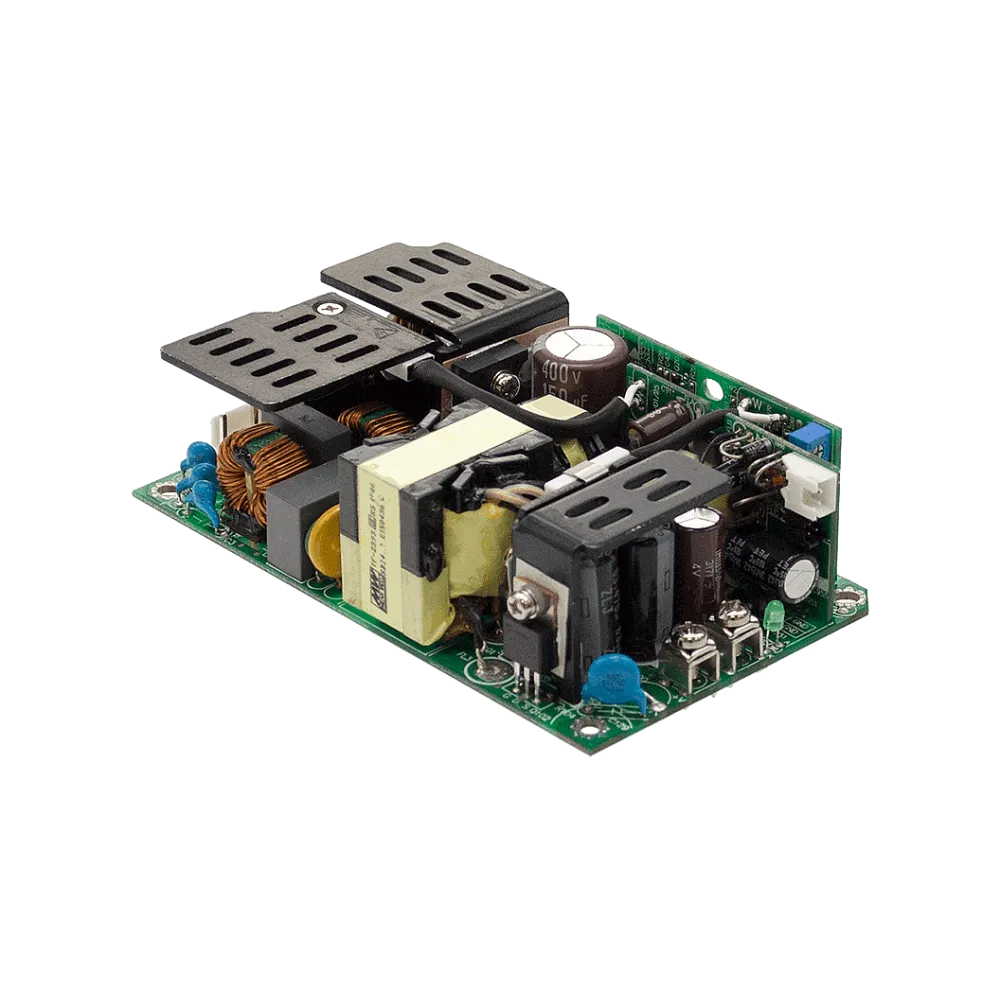

300W Medical Open Frame Power Supply 15V/20A
Technical data
- Universal AC input 85 to 264Vac
- 300W power with 20.5CFM forced ventilation
- 200W power with convection
- Built-In PFC >0.93
- No load power consumption <0.5W
- Auxiliary output 12V/0.5A
- Output signal for Power o.k.
- 2x MOPP (Isolation: primary to secondary)
- Suitable for BF application with appropriate system consideration
- Protection: short circuit, overload, overvoltage and over temperature
- Dimension 127 x 76.2 x 35mm (L x W x D)
Product specifications
| Output voltage (VDC) | 15 V |
| Product series | RPS |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 3 years |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Control signals | Remote ON/OFF |
| Height | 35 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Power | 300 W |
| Efficiency | 90.00% |
Data sheets
