About the product

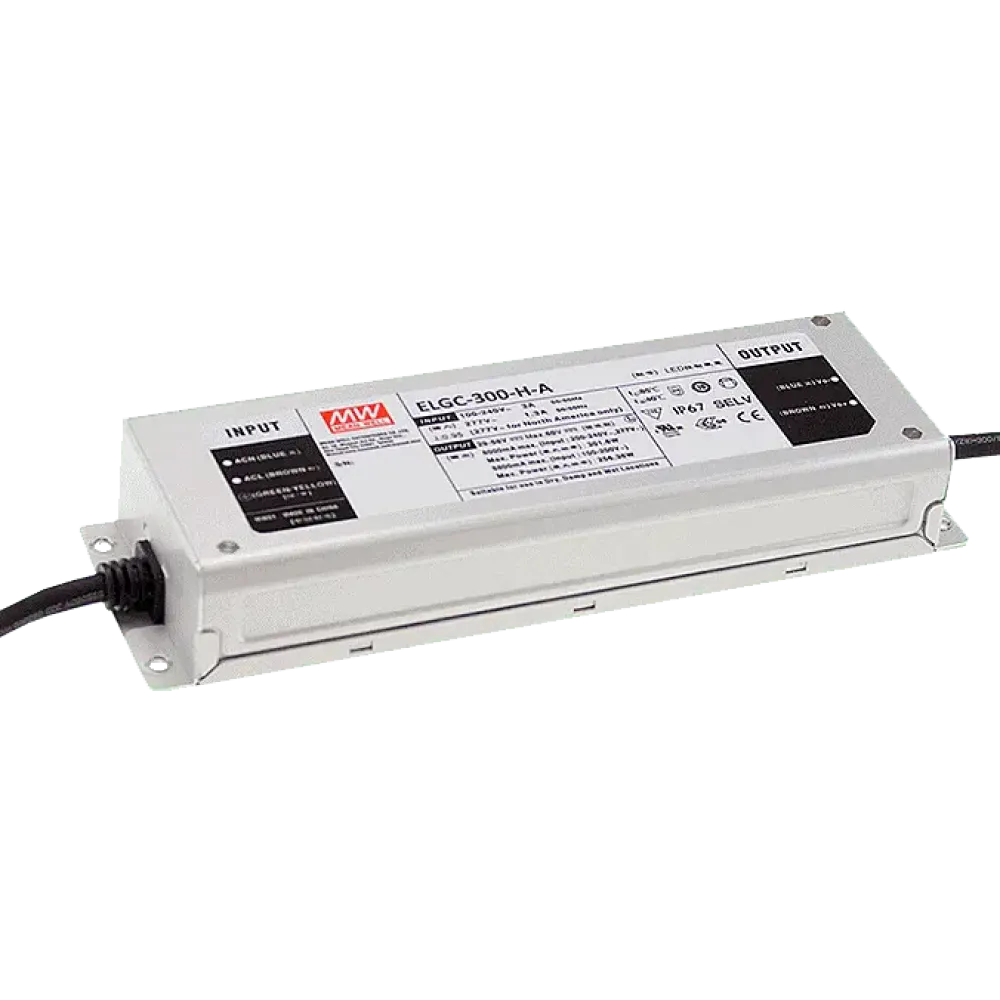

ELGC-300 is an LED converter with 300W constant power output, designed for the operation of LED lighting applications with constant current. Thanks to the IP67 protection, the power supply unit can be used in both indoor and outdoor applications. AB version with built-in dimming interface.
Technical data
- Input voltage 100 to 305Vac (note derating at low input voltages)
- Output current adjustable with built-in potentiometer
- Extended operating range due to constant power design
- Output voltage range: 58 to 116Vdc
- Setting range for output current on the power supply unit: 1300 to 4000mA (default setting 2800mA)
- Full power from 2600 to 4000mA
- Built-in 3in1 dimming function (0-10V, 10V PWM signal, resistor)
- Metal housing with IP67
- Dimensions 246 x 77 x 39.5mm (L x W x H)
Product specifications
| Application | Single color |
| Additional functions | Constant power |
| Connection | Cables |
| Dimming type | Current control |
| Manufacturer's warranty | 5 years |
| IP protection | IP67 |
| Width | 77 mm |
| Length | 246 mm |
| Power | 300 W |
| Current setting | Potentiometer |
| Height | 39.5 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Control | 0-10V, 1-10V, resistor |
