About the product

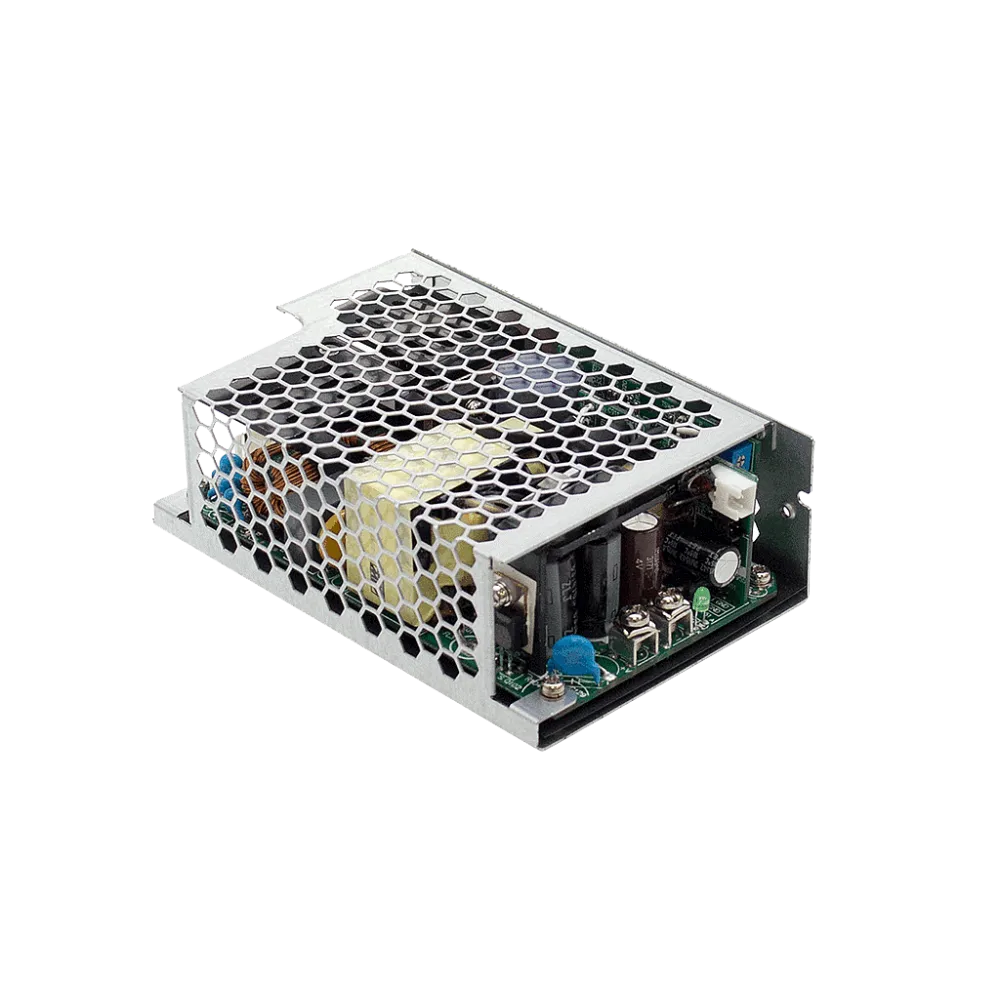

300W Enclosed Medical Power Supply 24V/12.5A
Technical data
- Universal AC input 90 to 264Vac
- 300W power with 20.5CFM forced ventilation
- 200W power with convection
- No load power consumption <0.5W
- 2x MOPP (Isolation: primary to secondary)
- Suitable for BF application with appropriate system consideration
- Protection: short circuit, overload, overvoltage and over temperature
- Dimension 130 x 86.6 x 43mm (L x W x D)
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote sense |
| Status signals | DC OK signal |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Application | Household, Medical |
| Voltage setting range | 22.8-25.2 VDC |
| Height | 43 mm |
| Width | 86 mm |
| Length | 130 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 80-264 V |
| Power | 300 W |
| Efficiency | 92.00% |
Data sheets
