About the product

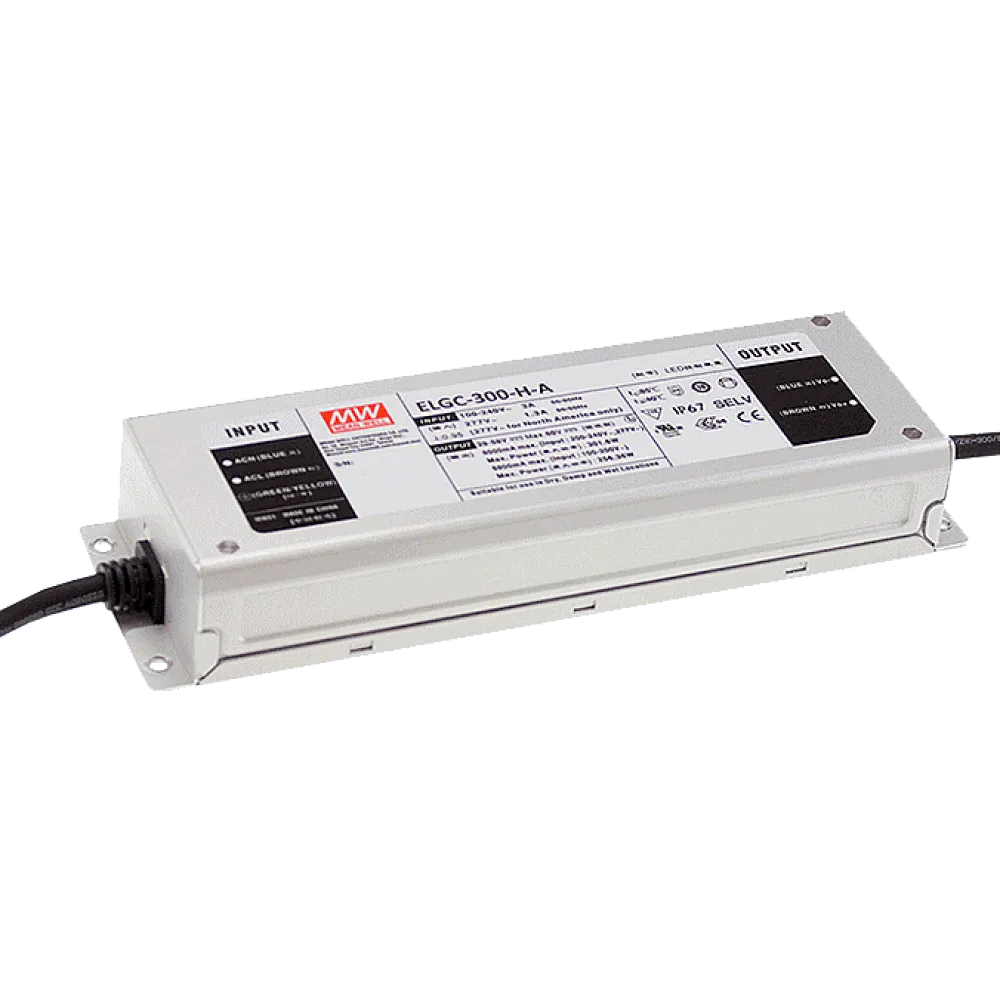

ELGC-300 series is a 300W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. DA Version with DALI dimming interface.
Technical data
- Universal AC Input 200 to 305Vac
- Constant Power Design
- Current adjustable via built-in potentiometer
- Output Voltage Region: 116 – 232Vdc
- Current adjustable range 650 – 2000mA (factory setting 1400mA)
- Full power range: 1300 – 2000mA
- Built-in DALI dimming interface
- Dimension 246 x 77 x 39.5mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 300 W |
| Output voltage range (VDC) | 116-232 V |
| Output current | 650-2000 mA |
| Input voltage range (VAC) | 110-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 77 mm |
| Length | 246 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Current setting | Potentiometer |
| Channels | 1 |
| Control | DALI2, DALI |
| Product series | ELG-C |
Data sheets
