About the product

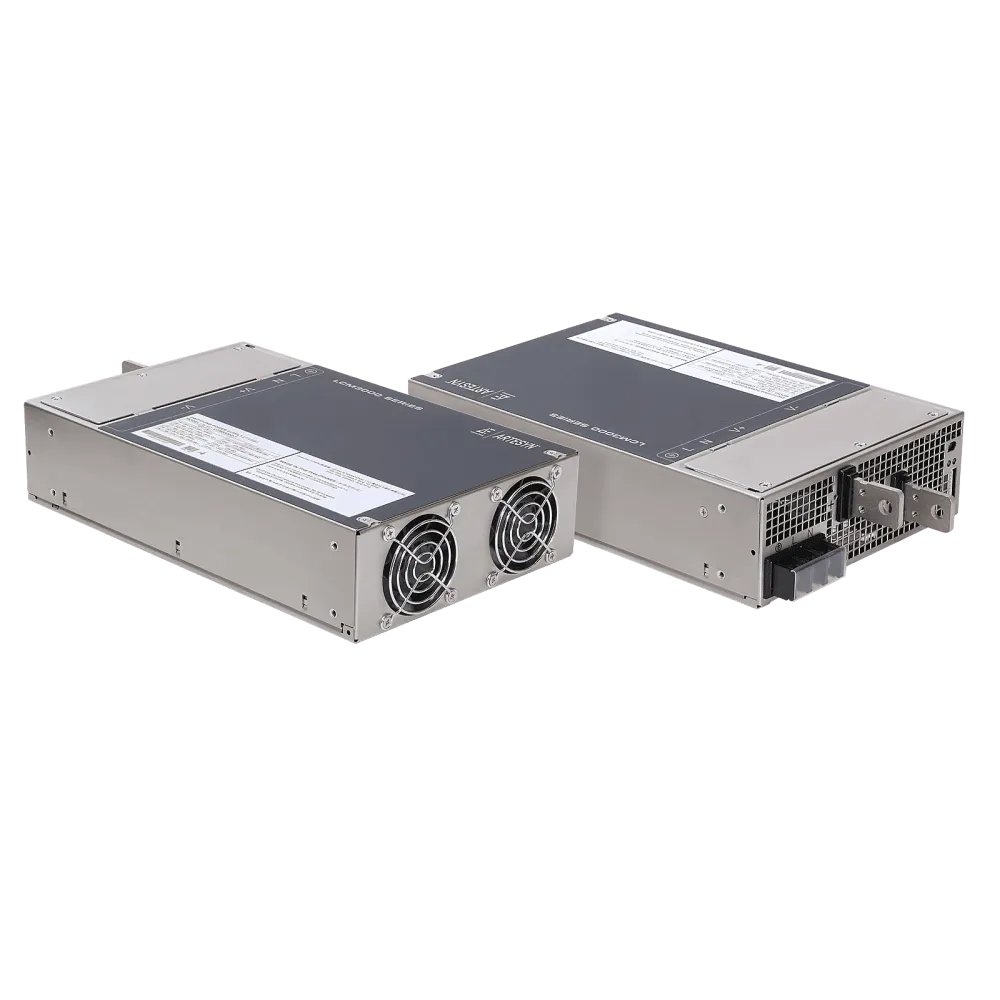

Advanced Energy’s Artesyn LCM-Family 300/600/1000/1500/3000Watt provide for a very wide range of AC/DC embedded power requirement. Offering no Power Derating over the entire Input range 85…264Vac, nominal outputs of 12V, 15V, 24V, 36V or 48Vdc (LCM3000: additionally 18Vdc and 72Vdc) and adjustable voltage of wide ranges from 10.8…52.8Vdc .
Technical data
- 3000Watt output power
- Dimensions 282.6 x 177.8 x 63.5mm
- Industrial/Medical safety
- No low line derating
- Operating Temperature -40°C…+70°C with derating
- 5Vdc @2A standby
- Efficiency 90%
- Variable speed "Smart Fans"
- I2C / PMBus
- DSP controlled
- Option conformal coat
- Output Voltage adjustment range ±25%
- V-Programming from 20%…125%
- VAR configurable to any voltage from a single unit
- Warranty 5 Years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Manufacturer | Artesyn |
| Control signals | Programmable output voltage, Remote ON/OFF, Remote sense |
| Status signals | AC OK signal, DC OK signal |
| Additional functions | 5V DC auxiliary output, Parallel connectable, PMBus |
| Application | ITE/AV, Medical |
| Voltage setting range | 2.4-12.0 VDC |
| Height | 63.5 mm |
| Width | 177.8 mm |
| Length | 282.6 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 90-264 V |
| Power | 3000 W |
| Efficiency | 90.00% |
