About the product

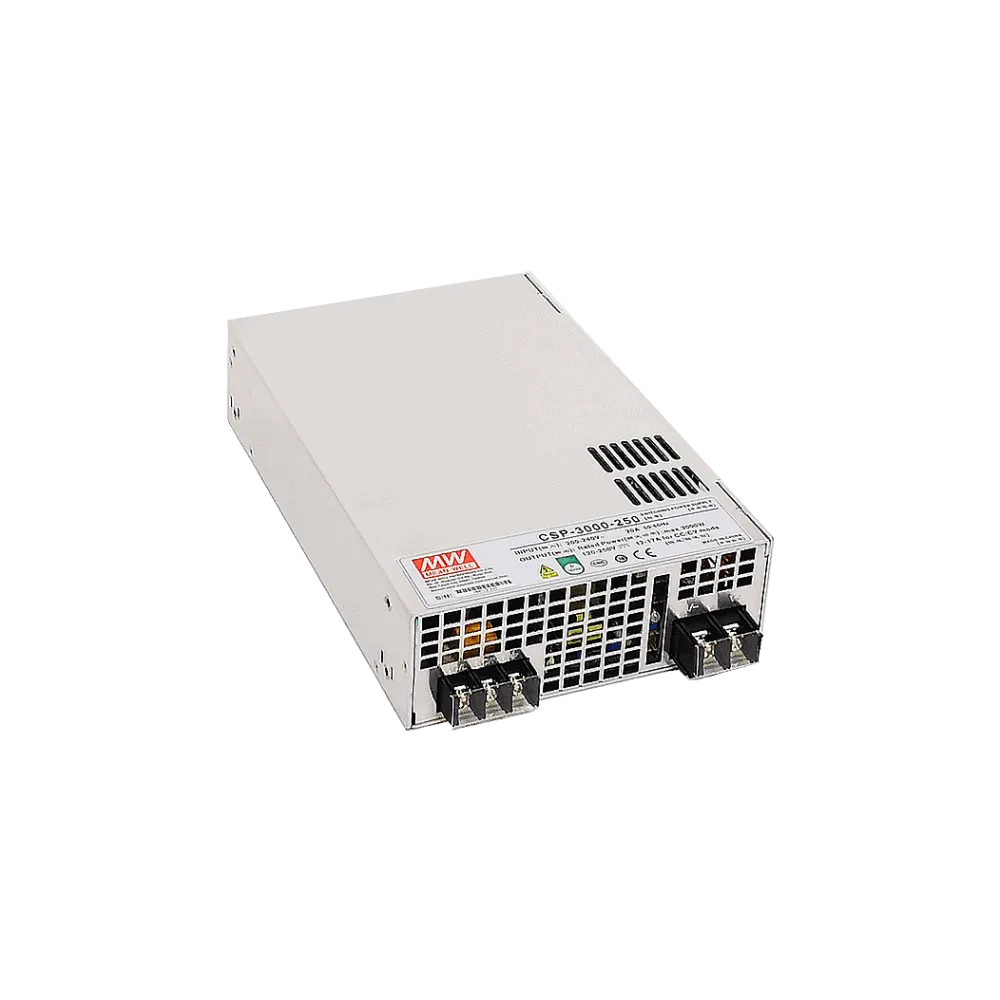

CSP-3000 series is a single-output high voltage power supply. Combined with constant current limit set at 100% output, this product series is very suitable for laser, UV curing, and charging equipment.
Technical data
- 180~264VAC input
- Built-in active PFC function
- High efficiency up to 93%
- Built-in DC fans for forced air cooling
- Output voltage/current programmable
- Active current sharing up to 7200W(2+1)
- Built-in remote ON/OFF control & power OK signal
- Auxiliary power 12V@0.4A
- Protections: short circuit/over current/over voltage/over temperature
- UL/Dekra/EAC/CB/CE safety approved
- Dimensions (LxWxH): 278 x 177.8 x 63.5 mm
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 250 V |
| Manufacturer warranty | 5 years |
| Manufacturer | MEAN WELL |
| Control signals | Programmable output current, Programmable output voltage, Remote ON/OFF |
| Status signals | DC OK signal |
| Additional functions | 12V DC auxiliary output, Parallel connectable |
| Application | ITE/AV |
| Voltage setting range | 37.5-250.0 VDC |
| Height | 63.5 mm |
| Width | 177.8 mm |
| Length | 278 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 180-264 V |
| Power | 3000 W |
| Efficiency | 92.00% |
