About the product

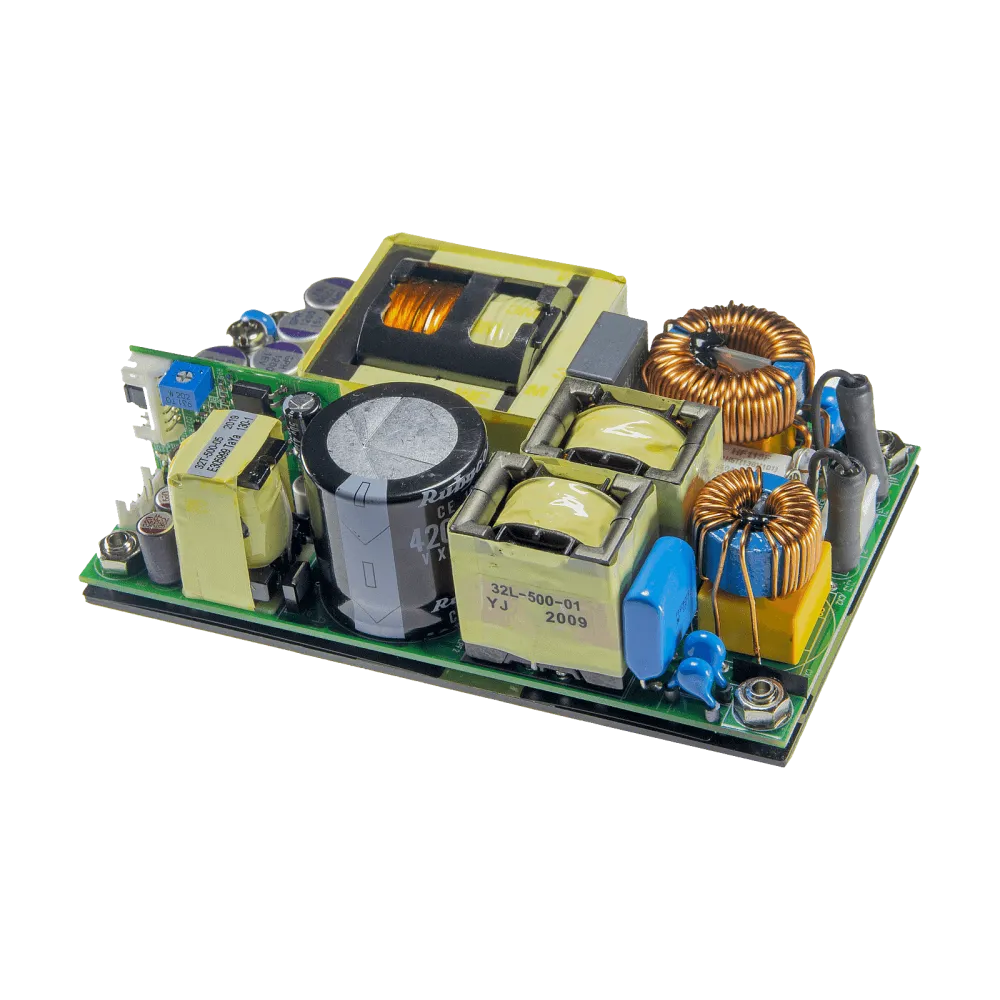

300 Open Frame Power Supply 18V/16.67A
Technical data
- Universal Input Range 80…264Vac
- High Efficiency 94.5%
- 3"x 5" Compact Size
- Low Inrush Current
- High Power Density Up to 20.96W/cubique Inch
- 390Watt Natural
- 470…500Watt Convection with baseplate
- No Load Power Consumption0.5Watt
- Over Temperature Protection
- PS On/Off Remote Control
- Power Good and Power Fail Signal
- +5V Standby, 12V Fan Output
- Active PFC Meets EN61000-3-2
- Meets EN55032 Class B
- Meets IEC/EN60335
- Class I
Product specifications
| Output voltage (VDC) | 18 V |
| Product series | CFM |
| Manufacturer | Cincon |
| Manufacturer warranty | 3 years |
| Additional functions | 5V DC auxiliary output, 12V DC auxiliary output |
| Status signals | Power good signal |
| Control signals | Remote ON/OFF, Remote sense |
| Height | 39.1 mm |
| Width | 76.2 mm |
| Length | 127 mm |
| Protection class | Class I |
| Standard size | 3 x 5 inches |
| Application | Household, ITE/AV |
| Power | 300 W |
| Efficiency | 93.00% |
