About the product

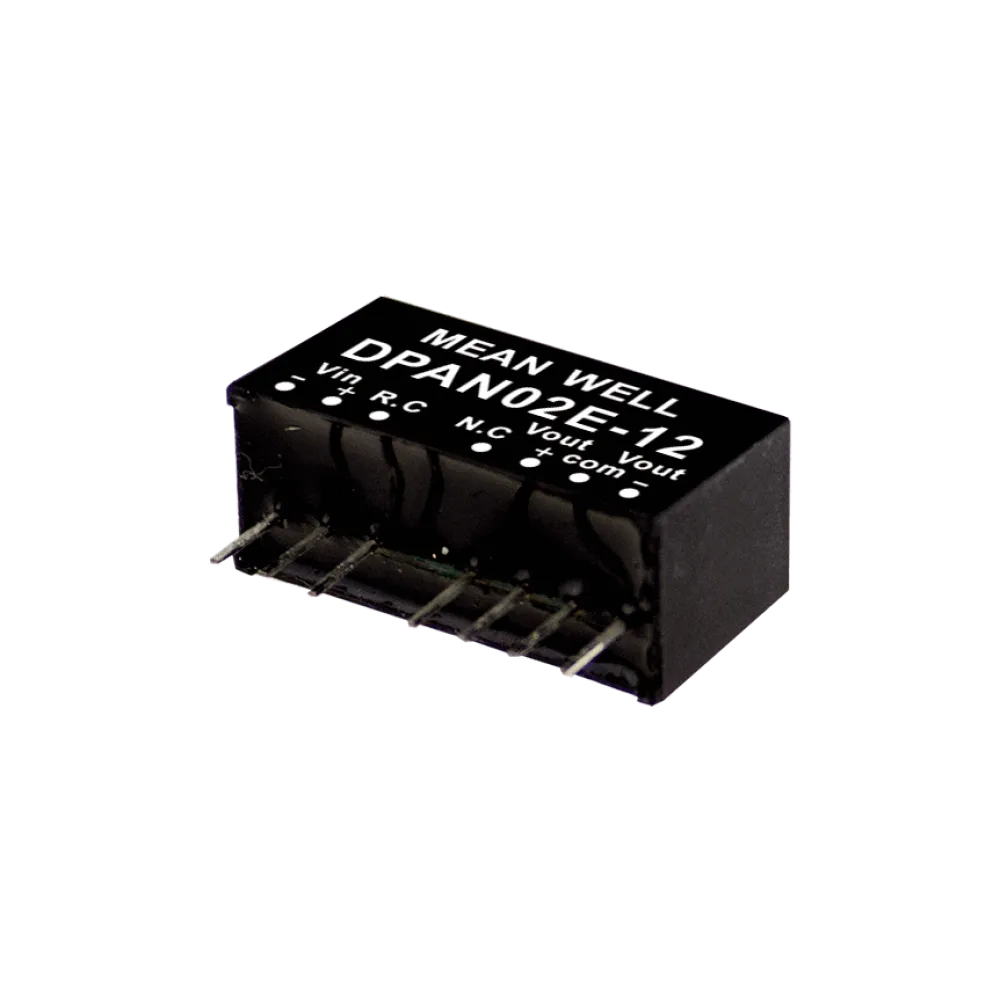

2W DC/DC-Converter, Input 4.5…9V, Output +/-12V / +/-0.083A
Technical data
- SIP8 package with industry standard pinout
- 2:1 wide input range
- Operating Temperature range -40°C to +90°C
- No minimum load required
- Comply to EN55032 radiated class A without additional components
- High efficiency up to 85%
- Protection : Continuous short circuit / Overload
- 1.5kVdc I/O Isolation
- Remote On/Off Control
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Length | 21.8 mm |
| Package / case | SIP8 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 4.5-9 V |
| Nominal input voltage (VDC) | 5 V |
| Output current | 83000 mA |
| Power | 2 W |
| Manufacturer warranty | 3 years |
