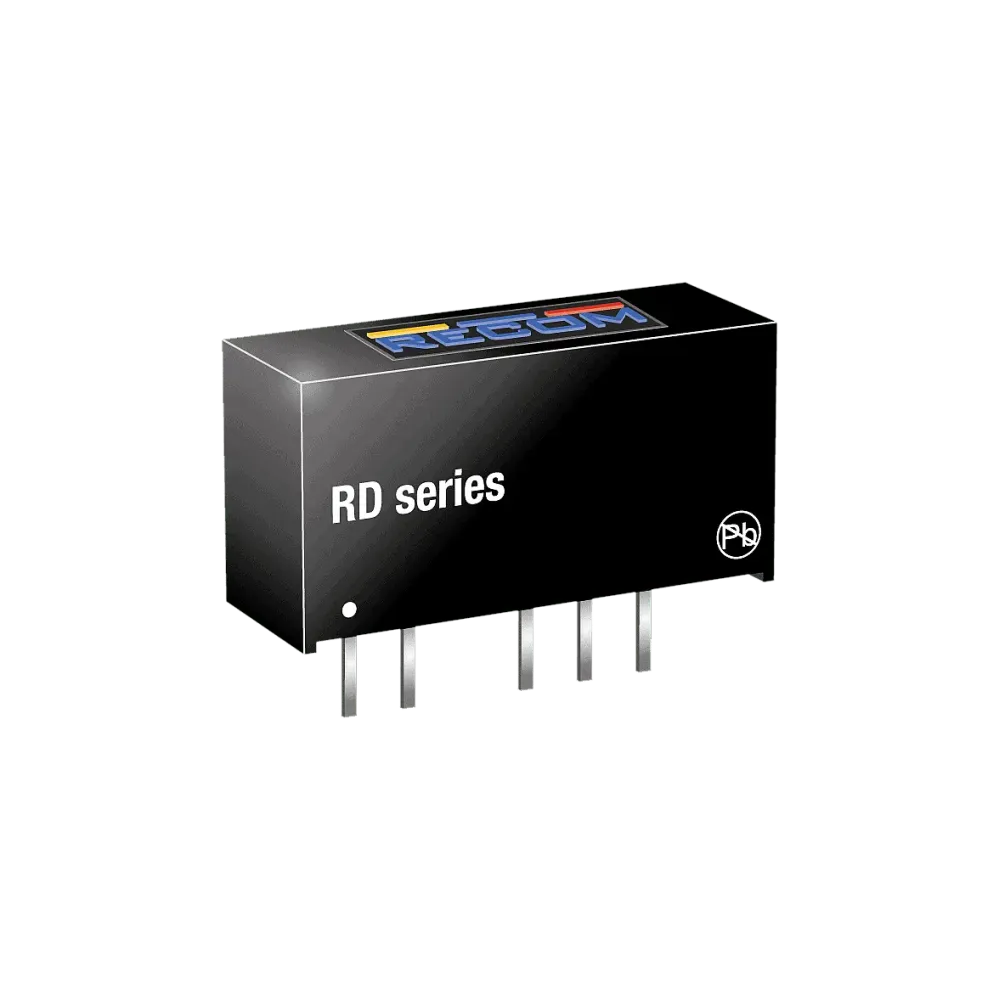

2W DC/DC converter, input 24V +/-10%, output +15V/+66mA / -15V/-66mA, SIP7

The RD series has been specially developed for applications where two power rails need to be generated from a single supply rail and a cost-effective solution is required. With efficiencies of up to 87%, full output power is available over the operating temperature range of -40°C to +85°C and the converters can be used with derating in ambient temperatures of up to 100°C. The wide range of industry standard input voltage and output voltage options and input/output isolation of 1kVDC or 2kVDC make these converters suitable for many industrial applications.

Technical data

• 2Watt converter with two outputs
• SIP7 housing according to industry standard
• Power sharing at the outputs
• Optional permanent short-circuit protection
• 1kVDC and 2kVDC basic insulation
• UL94 V-0 Housing material
• Efficiency of up to 87
