About the product

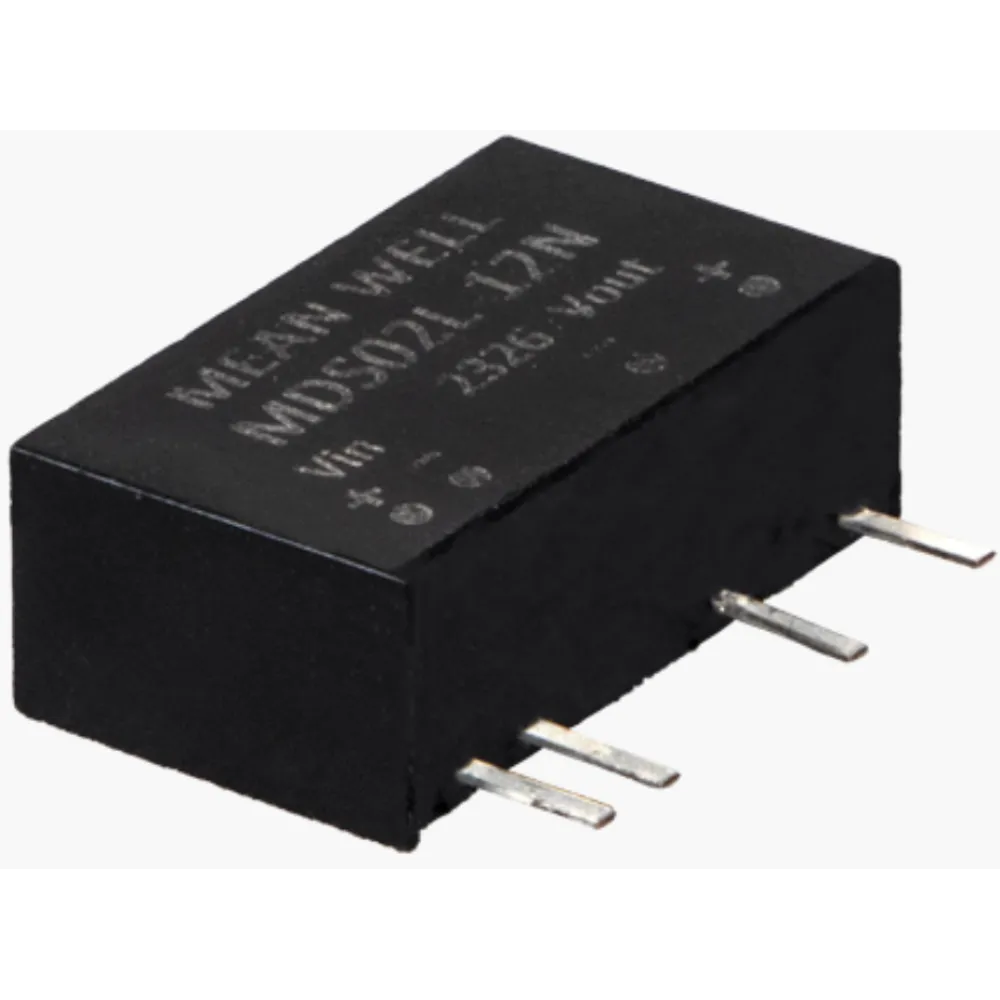

MDS02-N are 2 watt isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features internaional standard pins, a high efficiency up to 86%, wide working temperature range -40° to +95°C, 6kVDC I/P-O/P Isolation voltage, short circuit protection, etc. The models are suitable for medical systems, ultra low leakage current or industrial contro, telecommunication field, distributed power architecture, and so on.
Technical data
- SIP7 package with international standard pinout
- Operating temperature range -40°…+95°C
- Medical safety approved (1x MOPP/2x MOOP) according to IEC60601-1
- Low patient leakage current <2µA
- Protection : short circuit (Continuous)
- Reinforced isolation 6kVdc or 4.2kVac hight I/O Isolation
- Low Cost
- 3 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 3 years |
| Manufacturer | MEAN WELL |
| Application | ITE/AV, Medical |
| Height | 11.5 mm |
| Width | 7.1 mm |
| Length | 19.7 mm |
| Package / case | SIP7 |
| Regulation | Unregulated |
| I/O isolation | 6000 V DC |
| Input voltage ratio | +/-10 % |
| Input voltage range (VDC) | 10.8-13.2 V |
| Nominal input voltage (VDC) | 12 V |
| Output current | 167 mA |
| Panel power | 2 W |
| Efficiency | 84.00% |
