About the product

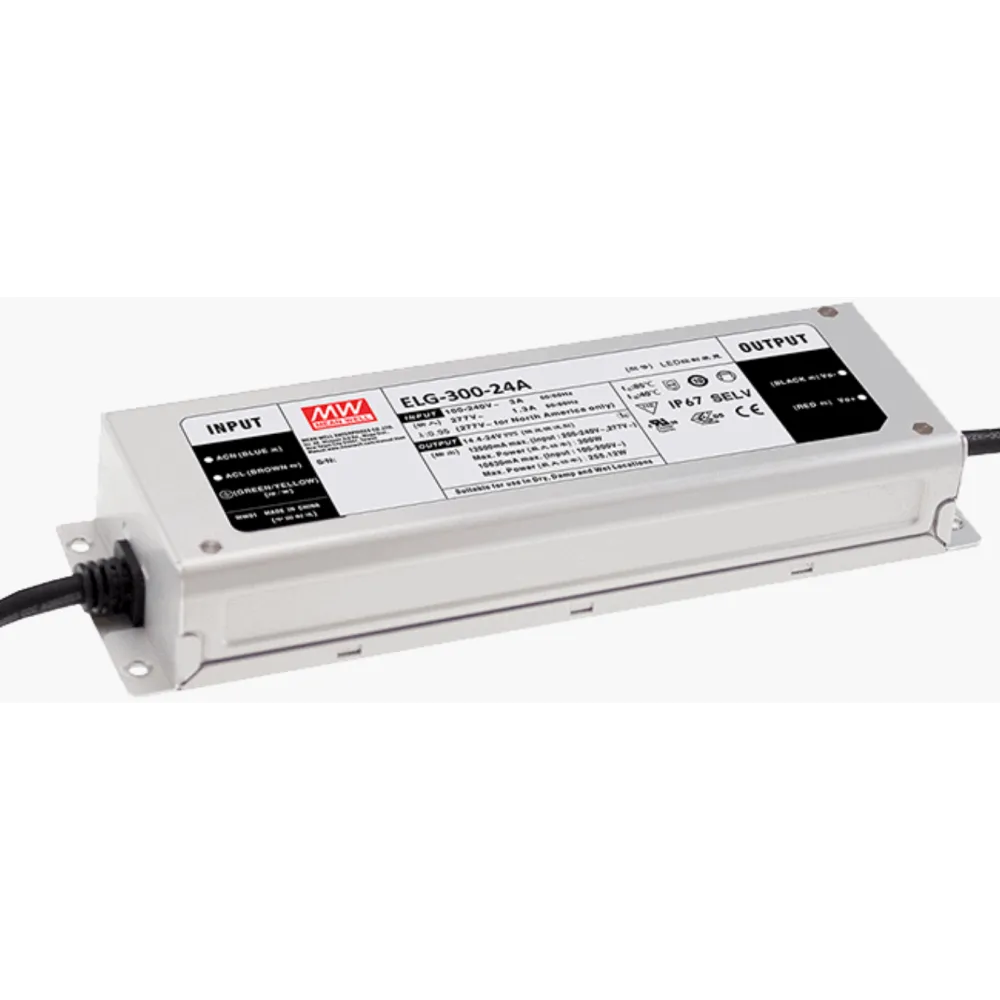

ELG-300 series is a AC/DC LED driver featuring the dual mode constant voltage and constant current output. Io and Vo adjustable through built-in potentiometer.
Technical data
- 100-305 Vac Input Range (De-rating may be needed under low input voltages)
- Built-in active PFC Function
- Output voltage and constant current level can be adjusted through internal potentiometer
- IP65 Design
- Meet 6kV Surge Immunity Level (IEC61000-4-5)
- Fully encapsulated metal housing
- Typical Lifetime 50’000h
- Working Temperature Tc -40ºC to +85ºC
- Dimensions 246 x 77 x 39.5mm (L x W x H)
- 5 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Product series | ELG |
| Input voltage range (VAC) | 110-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 39.5 mm |
| Width | 77 mm |
| Length | 246 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 22 A |
| Power | 264 W |
| Manufacturer | MEAN WELL |
