About the product

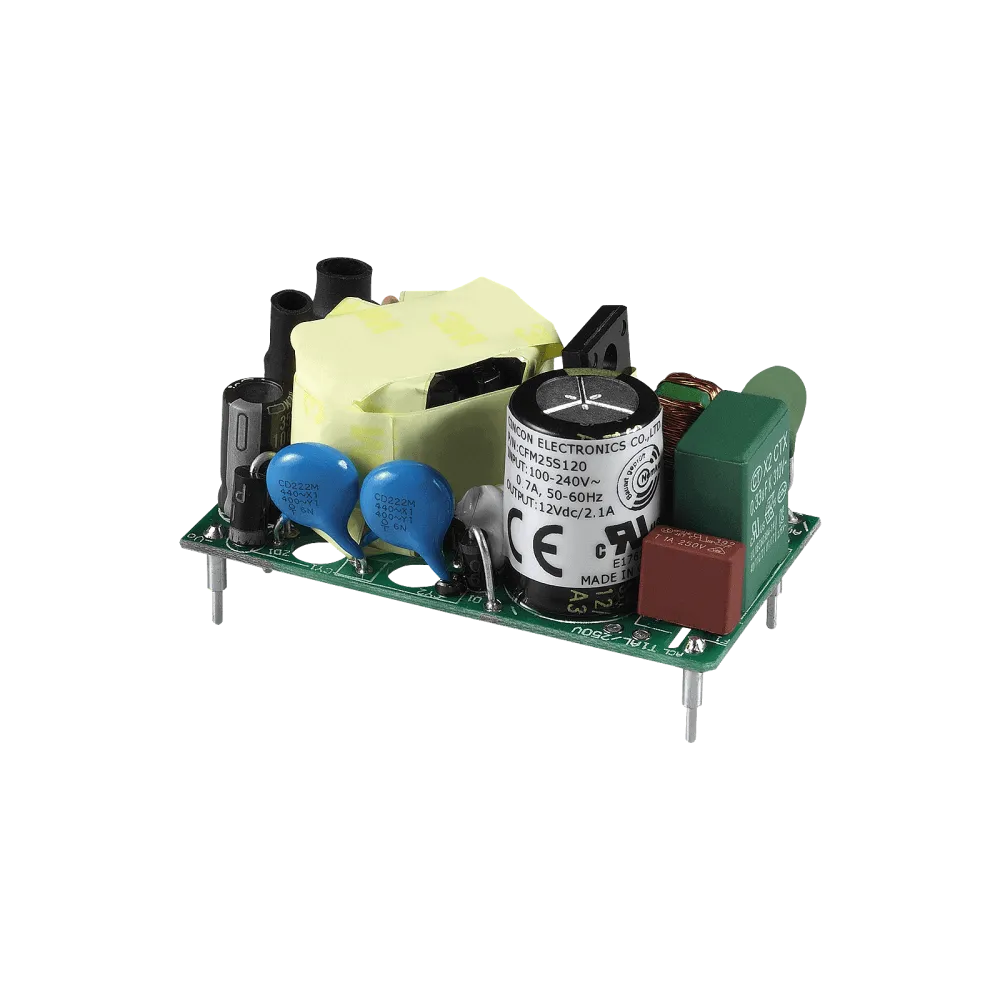

25W PCB Mount Power Supply 12V/2.1A
Technical data
- Universal AC Input 90 to 264Vac
- Efficiency 87%
- No Load Power Consumption <0.1W
- Protection: short circuit and over voltage
- Meets EN55032 Class B and CIRSS/FCC Class B
- Meets IEC62368-1, UL62368-1 and IEC/EN60335-1, IEC61558-1
- Industrial safety IEC/UL/EN60950-1
- Peak Power (2 times of Rated Power)
- Class II
- Dimension 50.8 x 27.94 x 24.9mm (L x W x H)
- Dimension (Suffix -T) 70.5 x 27.94 x 23mm (L x W x H)
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 3 years |
| Manufacturer | Cincon |
| Certificates | EN60335-1 / Household, EN62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 90-264 V |
| Height | 24.9 mm |
| Width | 28 mm |
| Length | 50.8 mm |
| Application | Household, ITE/AV |
| Power | 25 W |
| Efficiency | 84.00% |
Data sheets
