About the product

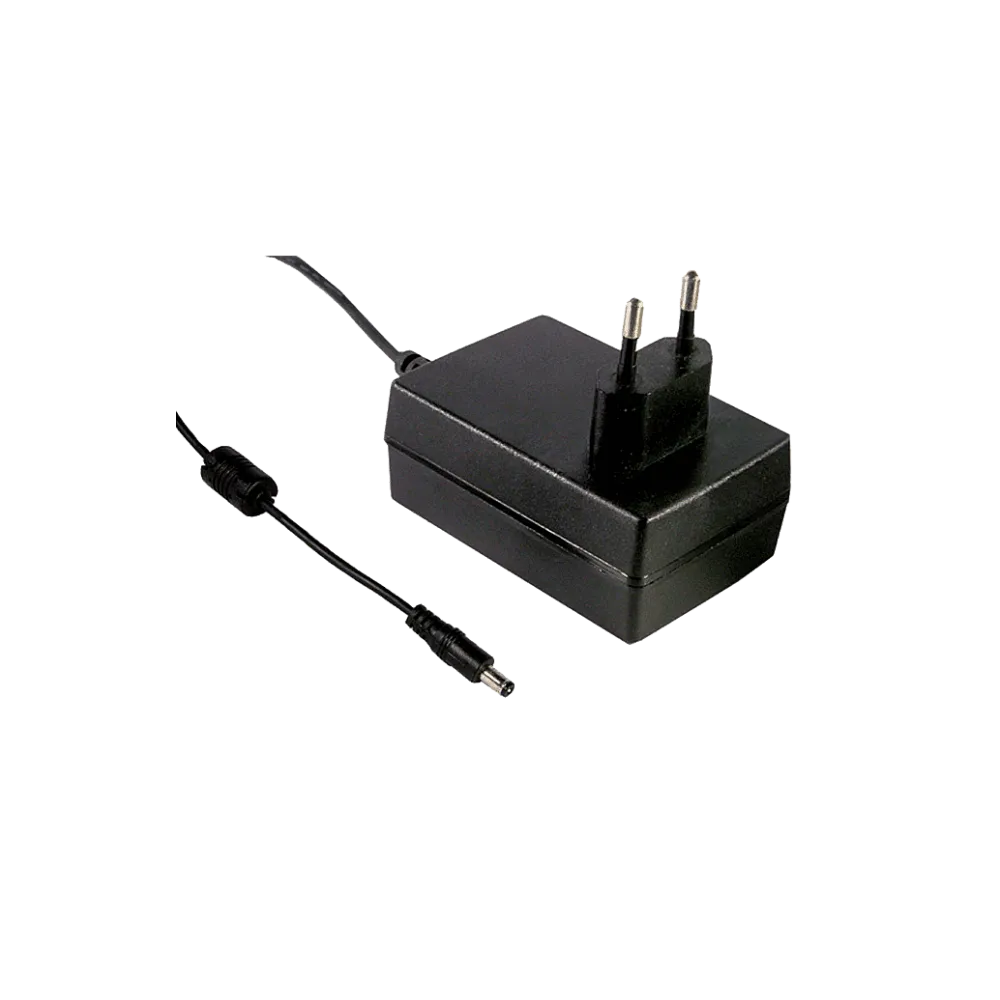

25W Medical Wall Mount Adaptor 12V/2.08A, EU Version
Technical data
- Universal AC input 80 to 264Vac, 2 pole Euro plug
- DC plug 2.1 x 5.5 x 11mm
- Medical safety approved (2xMOPP level) for patient contact
- Fulfils the Home Healthcare standard EN60601-1-11
- Leakage current <50µA
- Energy efficiency Level VI (except 5 to 9V for Level V)
- No load power consumption <0.1W
- Class II power without earth pin
- Ambient temperature up to 60°C, Derating above 40°C
- Dimension 79 x 54 x 33mm (L x W x H)
Product specifications
| Output voltage (VDC) | 12 V |
| Power | 25 W |
| Efficiency level | VI |
| Application | Home Healthcare, Medical |
| DC connector | 2.1x5.5x11 mm |
| Manufacturer | MEAN WELL |
