About the product

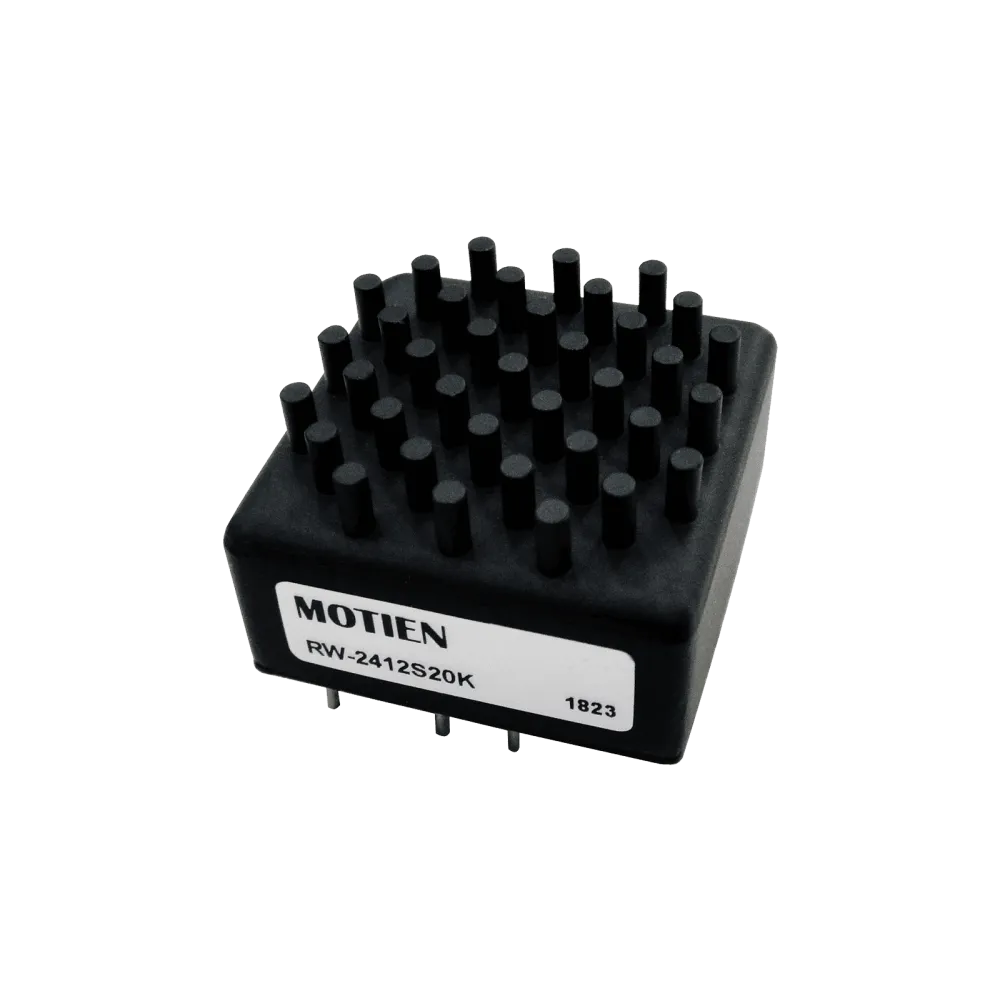

25W DC/DC-Converter, Input 16…160V, Output 24V/1.04A
Technical data
- Ultra wide input range
- Efficiency up to 85%
- 3000Vdc Isolation
- -40°.+100°C Operating Temperature Range
- Adjustable Output Voltage
- Protections: Under Voltage lock-out/Continuous Short Circuit/Over Load/Over Voltage/Over Temperature
- Remote On/Off Control (CTRL)
- Meets EN50155 approval for railway applications
- 3 Years warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Motien |
| Application | ITE/AV, Railway |
| Height | 16.4 mm |
| Width | 27.6 mm |
| Length | 27.6 mm |
| Package / case | 1.09 x 1.09 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 16-160 V |
| Nominal input voltage (VDC) | 24-110 V |
| Output current | 1000 mA |
| Power | 25 W |
| Manufacturer warranty | 3 years |
Data sheets
