About the product

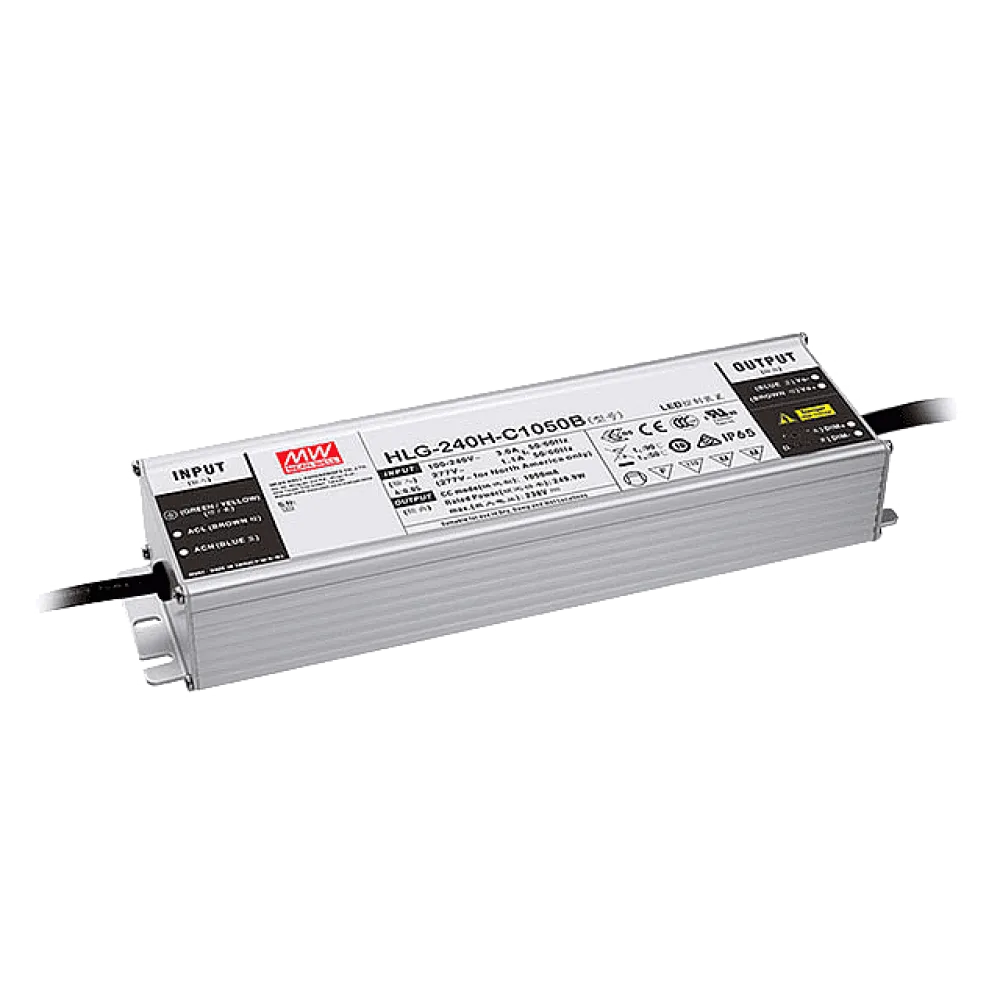

250W CC LED Driver 1050mA/119…238V
Technical data
- Universal AC input 90 to 305Vac
- Constant current LED driver with high output voltage
- Constant current level can be adjusted through internal potentiometer
- IP65 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 244.2 x 68 x 38.8mm (L x W x H)
- 7 years warranty
- Manufacturer MEAN WELL
Product specifications
| Power | 250 W |
| Output voltage range (VDC) | 119-238 V |
| Output current | 1050 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 7 years |
| Connection | Cable |
| IP protection | IP67 |
| Height | 38.8 mm |
| Width | 68 mm |
| Length | 244.2 mm |
| Application | Single color |
| Dimming method | Current regulation |
| Channels | 1 |
| Control | Resistor, 1-10V, PWM control signal |
| Product series | HLG-C |
Data sheets
