240W LED Driver CV+CC 54V/4.45A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

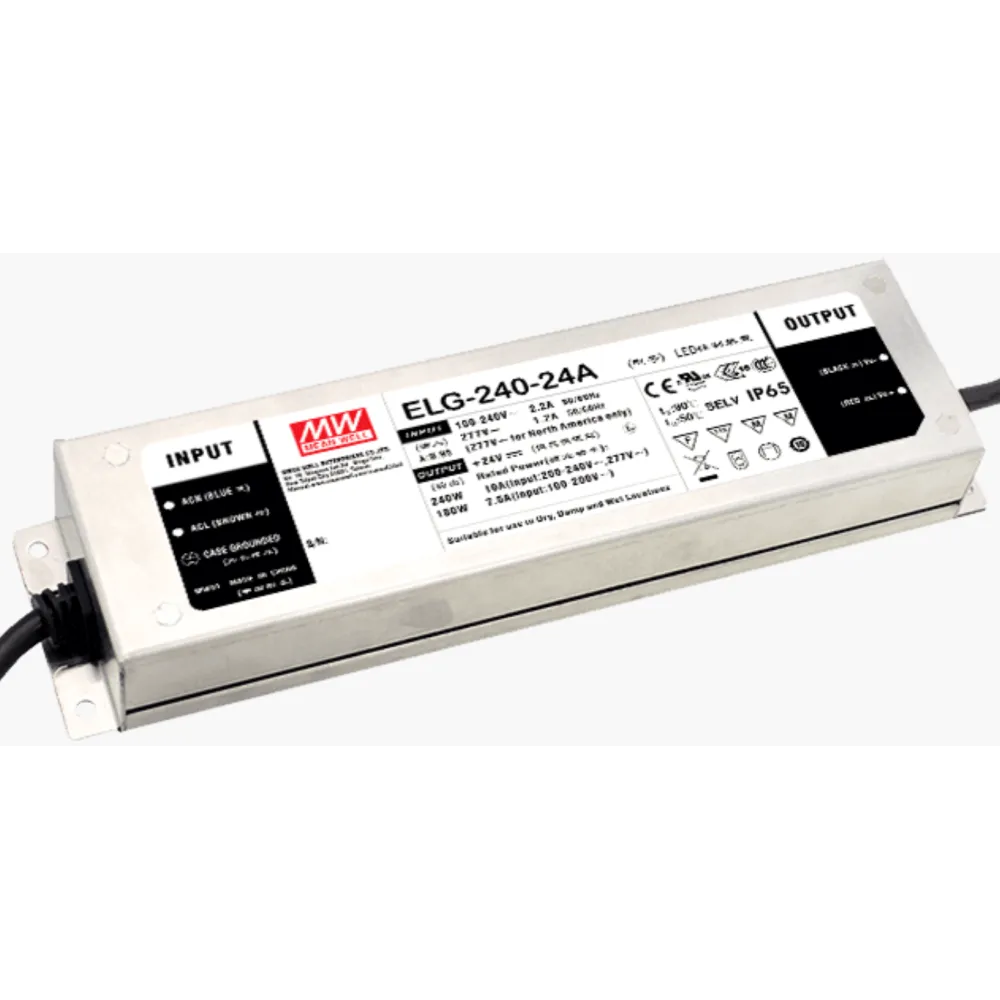

MEAN WELL ELG-240-xxA-3Y series is a AC/DC LED driver featuring the dual mode constant voltage and constant current output. Io and Vo adjustable through built-in potentiometer.

Technical data

100-305 Vac Input Range (De-rating may be needed under low input voltages)
Built-in active PFC Function
Output voltage and constant current level can be adjusted through internal potentiometer
IP65 Design
Meet 6kV Surge Immunity Level (IEC61000-4-5)
Fully encapsulated metal housing
Typical Lifetime 50’000h
Working Temperature -40°C to +70°C
Dimensions 244 x 71 x 37.5mm (L x W x H)
5 years warranty
Manufacturer MEAN WELL

Product specifications

Output voltage (VDC)	54 V
Manufacturer warranty	5 years
Product series	ELG
Input voltage range (VAC)	110-277 V
Connection	Cable
IP protection	IP65
Height	37.5 mm
Width	71 mm
Length	244 mm
Application	Single color
Control	Non-dimmable
Channels	1
Output current	4.45 A
Power	240 W
Manufacturer	MEAN WELL
