About the product

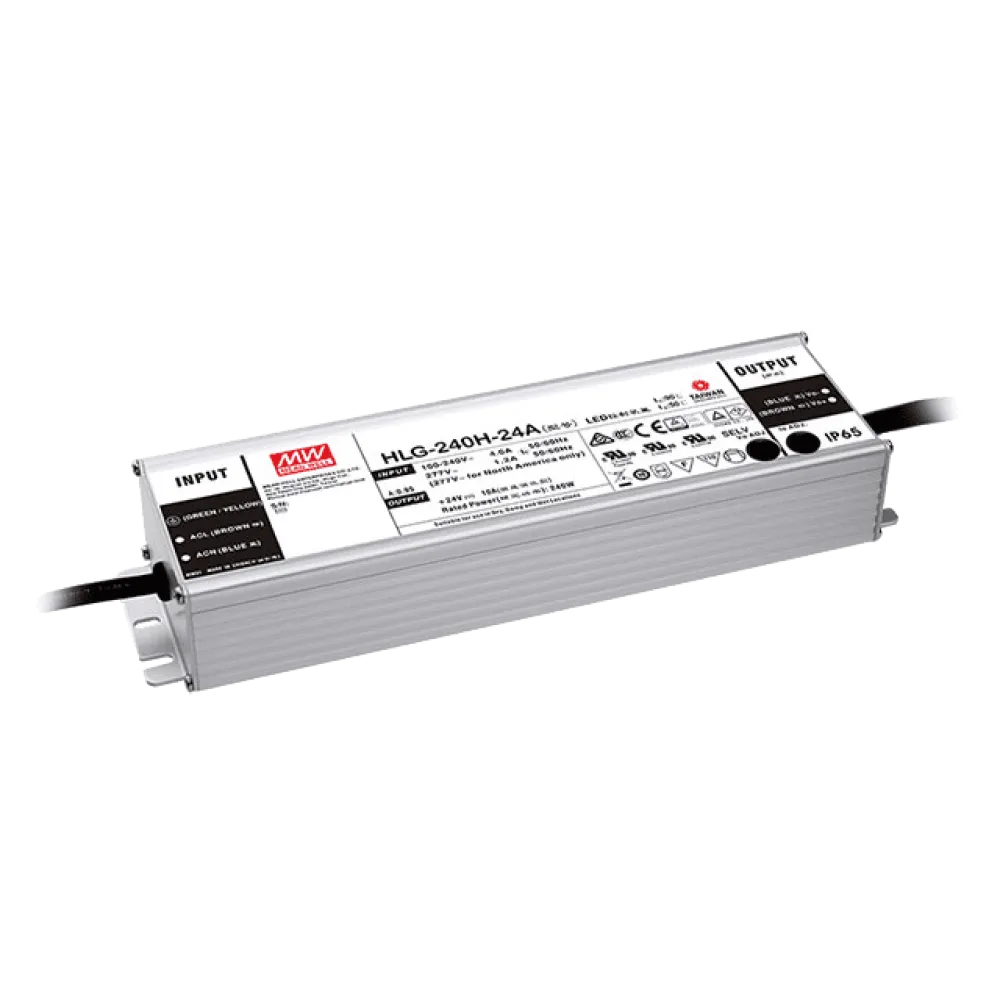

HLG-240H-24A is a robust 240W LED AC/DC converter with a very long life and high efficiency. Fully moulded and integrated in a metal housing, the LED driver is protected to IP65, making it ideal for both indoor and outdoor applications.
Technical data
- Universal AC input 90 to 305Vac
- CC/CV circuit for constant voltage and constant current applications
- Output voltage and constant current level can be adjusted through internal potentiometer
- IP65 for indoor and outdoor installations
- High reliable driver with long lifetime
- Fully encapsulated metal housing
- Suitable for dry, damp, and wet location
- Type HL LED driver for use in class I, division 2 hazardous location luminaires
- Meet 4kV surge immunity level (IEC61000-4-5)
- Dimension 244.2 x 68 x 38.8mm (L x W x H)
- 7 years warranty
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Efficiency | 92.00% |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 7 years |
| Product series | HLG |
| Input voltage range (VAC) | 100-277 V |
| Additional functions | Current/voltage setting on unit |
| Connection | Cable |
| IP protection | IP65 |
| Height | 38.8 mm |
| Width | 68 mm |
| Length | 244.2 mm |
| Application | Single color |
| Control | Non-dimmable |
| Channels | 1 |
| Output current | 10 mA |
| Power | 240 W |
| Packaging unit | 12 |
Data sheets
