240W DIN Rail Power Supply 48V/5A

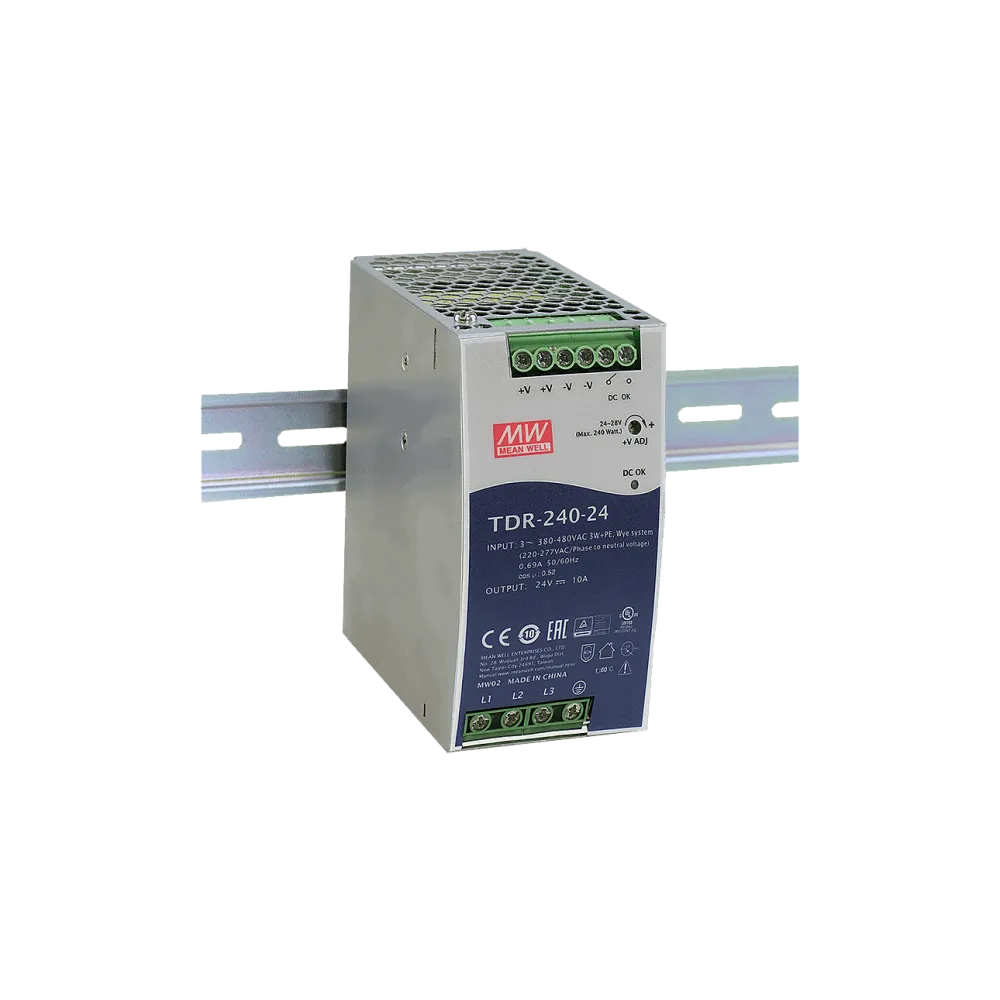

TDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3 Phase 340VAC to 550VAC (Dual Phase operation possible)

Technical data

• 3-phase 340~550VAC input (2-phase operation possible w/ de-rating)
• 63mm narrow width
• Up to 92% high efficiency
• Fanless design, cooling by free air convection
• -30~+70°C wide temperature range (full load operation at +60°C)
• Built-in DC OK relay contact signal
• Protections: short circuit, overload protection, overvoltage protection, over temperature protection
• Compliance to EN61000-6-2(EN50082-2) industrial immunity level
• UL61010, TUV EN61558-2-16, EAC, CE safety approved
• Suitable for mounting on DIN rails: TS-35/7.5 or TS-35/15
• Dimensions (W x H x D): 63 x 125.2 x 113.5mm
• 3 years warranty
• Manufacturer: MEAN WELL
