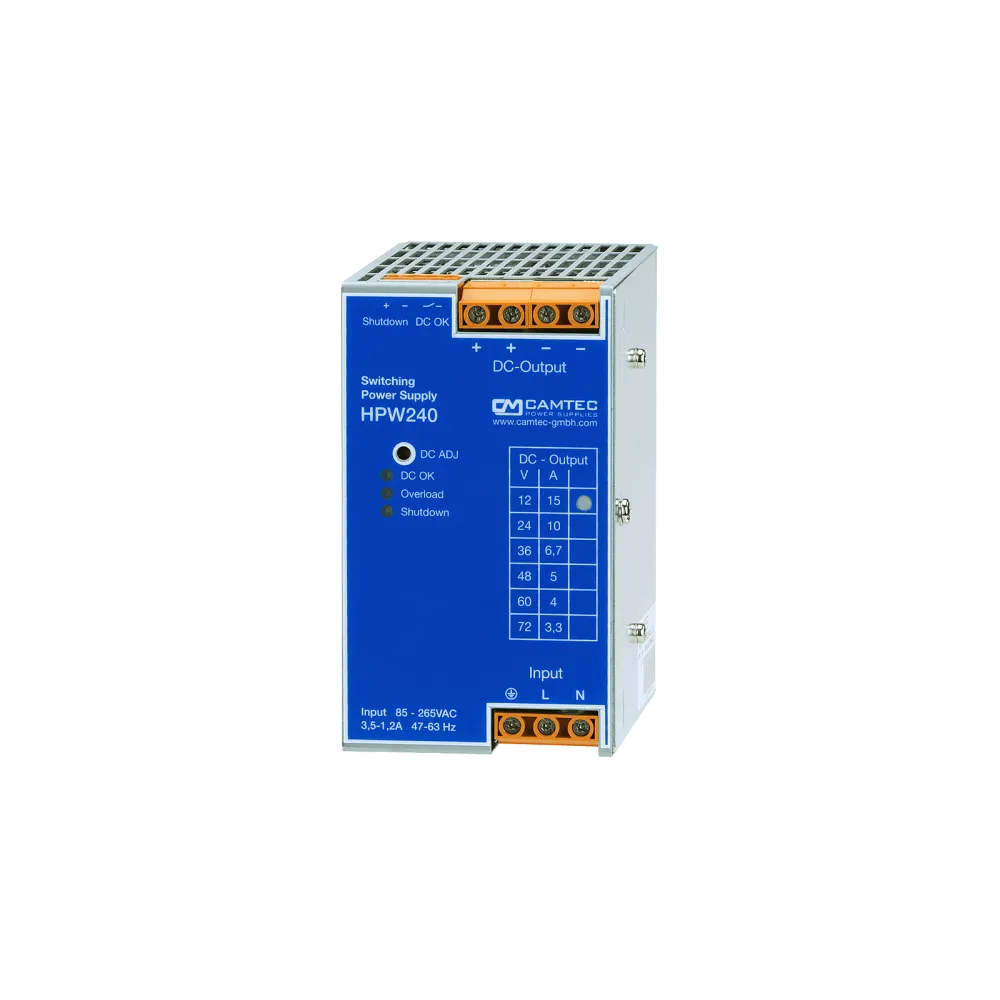

240W DIN Rail Power Supply 24V/10A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The HPW02401 DIN Rail power supply series is designed for worldwide electronics applications like machine building, railway, military and factory automation.

Technical data

Universal AC input 85 to 264Vac
Active inrush current limiter (<7A)
Soft start and auto recovery
Remote ON/OFF for Shutdown
Can be installed on DIN Rail TS-35
Springterminal 0.5 to 12mm2
Efficiency 91.5%
Protection: zero load, short circuit, over- and undervoltage
Operating temperature -20° to +60°C at full load
Typical U/I-characteristic for complex loads like DC-Motors
Dimension 130 x 75 x 115mm (H x W x D)
High reliable, shock- and vibration resistant
Output Electrolytic Capacitors Ultra Long lifetime 125°C
5 years warranty
Made in Germany
Manufacturer Camtec

Product specifications

Output voltage (VDC)	24 V
Manufacturer	Camtec
Manufacturer warranty	5 years
Product series	HPW
Status signals	AC OK relay contact, DC OK relay contact
Control signals	Remote ON/OFF
Overload characteristics	Constant current limiting
Additional functions	Parallel connectable
Depth	115 mm
Height	130 mm
Width	75 mm
Input voltage range (VAC)	85-264 V
Output current	10 mA
Power	240 W
Efficiency	91.00%
