About the product

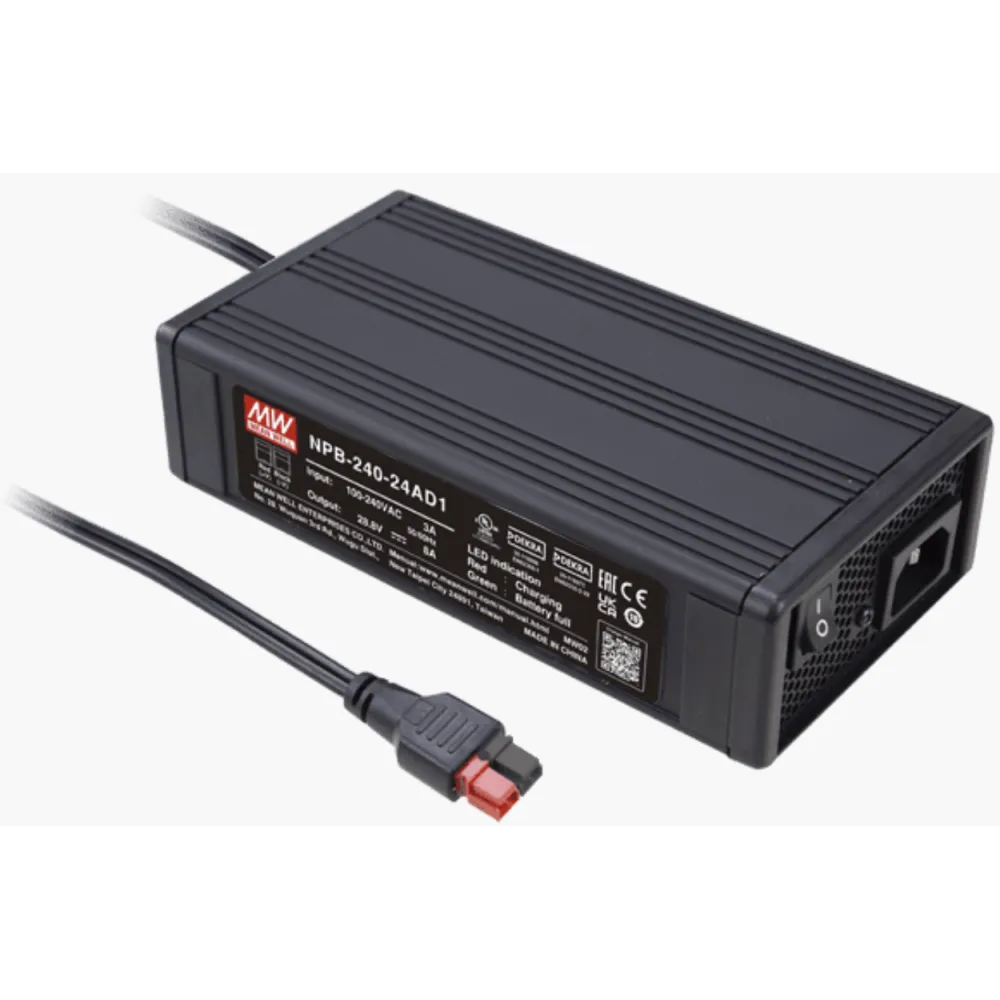

NPB-240 is a battery charger for lead-acid or lithium-ion batteries. By means of a DIP switch, the charging curve can be selected for 2-stage (Li-ion) or 3-stage (lead) characteristics. The charging current and voltage can be adjusted to the battery using potentiometers on the unit. Variant with Anderson plug.
Technical data
- Charger for lead-acid and Li-ion batteries
- Input voltage 90 to 264Vac
- Charging current and charging voltage adjustable.
- 2- or 3-stage charging characteristic selectable via DIP switch.
- Reverse polarity protected
- Fanless design, convection cooled
- Operating temperature range from -30°C to +70°C
- Dimensions 180 x 96 x 49mm (L x W x H)
Product specifications
| Battery voltage (VDC) | 48 V |
| Charging current | 4 mA |
| Power | 240 W |
| Product series | NPB |
| Manufacturer | MEAN WELL |
