About the product

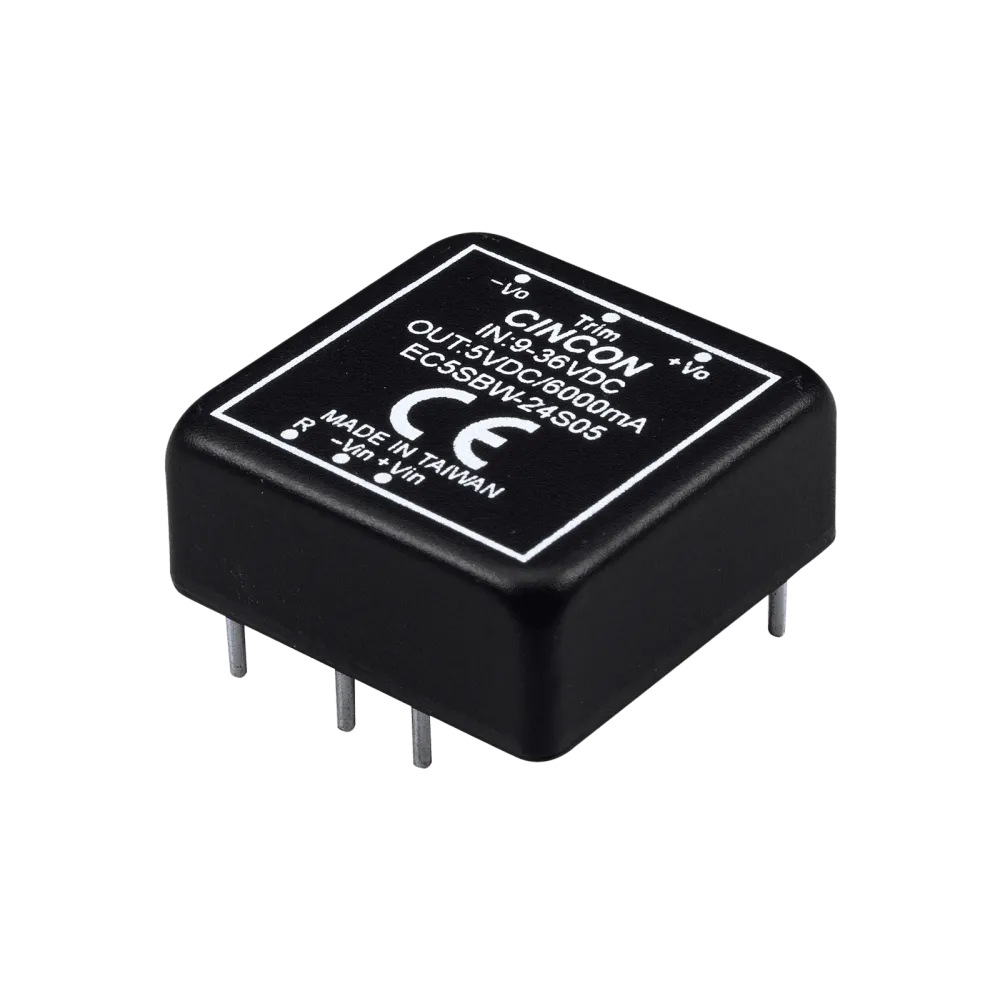

EC5SBW is the isolated 1 x 1 inch 30W DC-DC converter with 4:1 input range starting from 9 VDC to 36 VDC and from 18 VDC to 75 VDC. The series is suitable for various industrial and telecommunication use such as distributed power architectures, instruments, routers, industrial PCs, industrial automation devices, signal control systems, navigation system, antenna power unit, e-bike system, and other industrial applications.
The available output voltages are 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, ±12 VDC and ±15 VDC. In addition, the series can be operated within ambient temperature range of -40°C to 85°C and the case temperature is up to 105°C. Also, the efficiency is up to 90%.
Technical data
- 30W Isolated Output
- Shielded Metal Case
- Efficiency 90%
- Low No Load Power Consumption
- 4:1 Input Range
- Regulated Outputs
- Protection: Input Under Voltage/Over Current/Short Circuit
- Remote On/Off
- Dimension 25.4 x 25.4 x 10.2mm (L x W x H)
Product specifications
| Output voltage (VDC) | 3.3 V |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Height | 11.7 mm |
| Width | 25.4 mm |
| Length | 25.4 mm |
| Package / case | 1x1 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 1500 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-75 V |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 7500 mA |
| Power | 30 W |
| Manufacturer warranty | 3 years |
