About the product

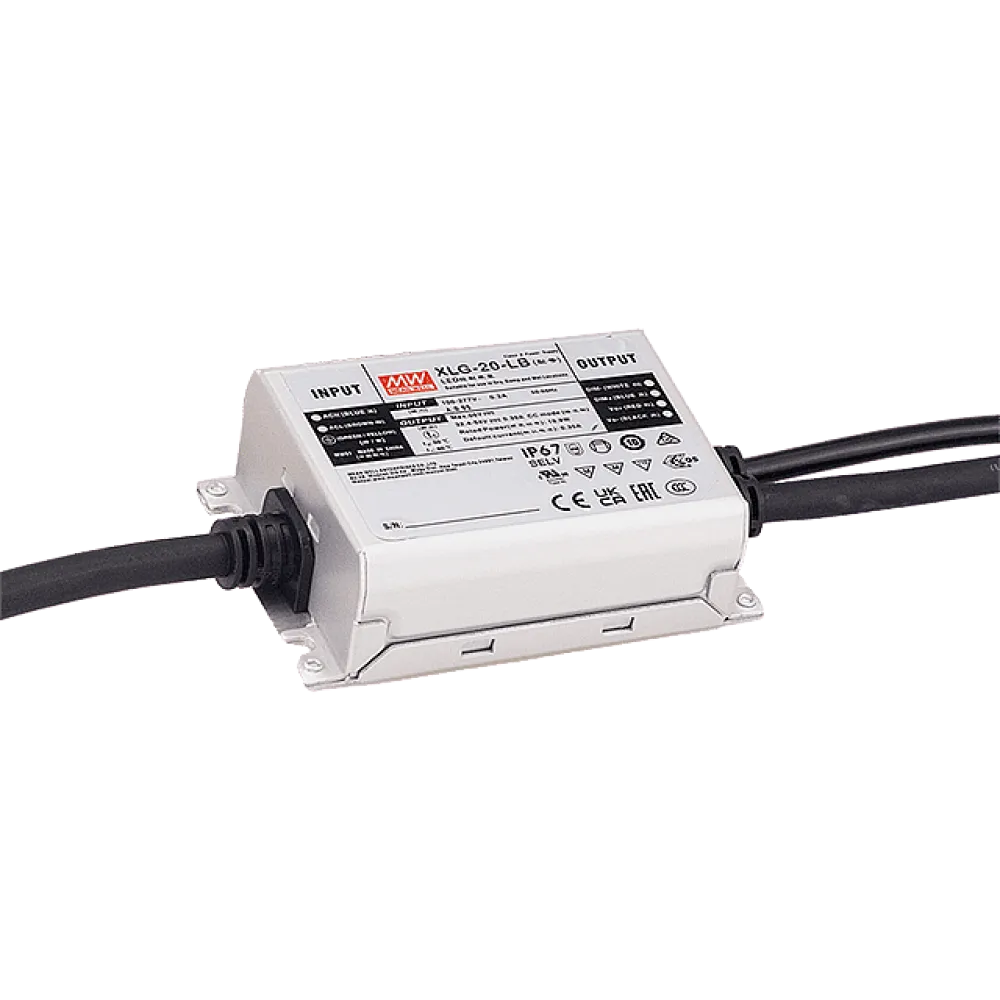

XLG-20 series is a 21W LED AC/DC Driver featuring the constant power mode output. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. "B" type with 3in1 dimming interface.
Technical data
- Universal AC Input 90 to 305Vac
- Constant Power Design
- Current 500mA
- Output Voltage Region 25.2-42 Vdc
- Built-in 3in1 dimming interface (0-10V, 1-10V, Resistor)
- Dimension 95 x 63 x 30mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Power | 21 W |
| Output voltage range (VDC) | 25-42 V |
| Output current | 500 mA |
| Input voltage range (VAC) | 100-277 V |
| Manufacturer | MEAN WELL |
| Manufacturer warranty | 5 years |
| Additional functions | Constant power |
| Connection | Cable |
| IP protection | IP67 |
| Height | 30 mm |
| Width | 63 mm |
| Length | 95 mm |
| Application | Single color |
| Channels | 1 |
| Control | Resistor, 0-10V, 1-10V |
| Product series | XLG |
Data sheets
