About the product

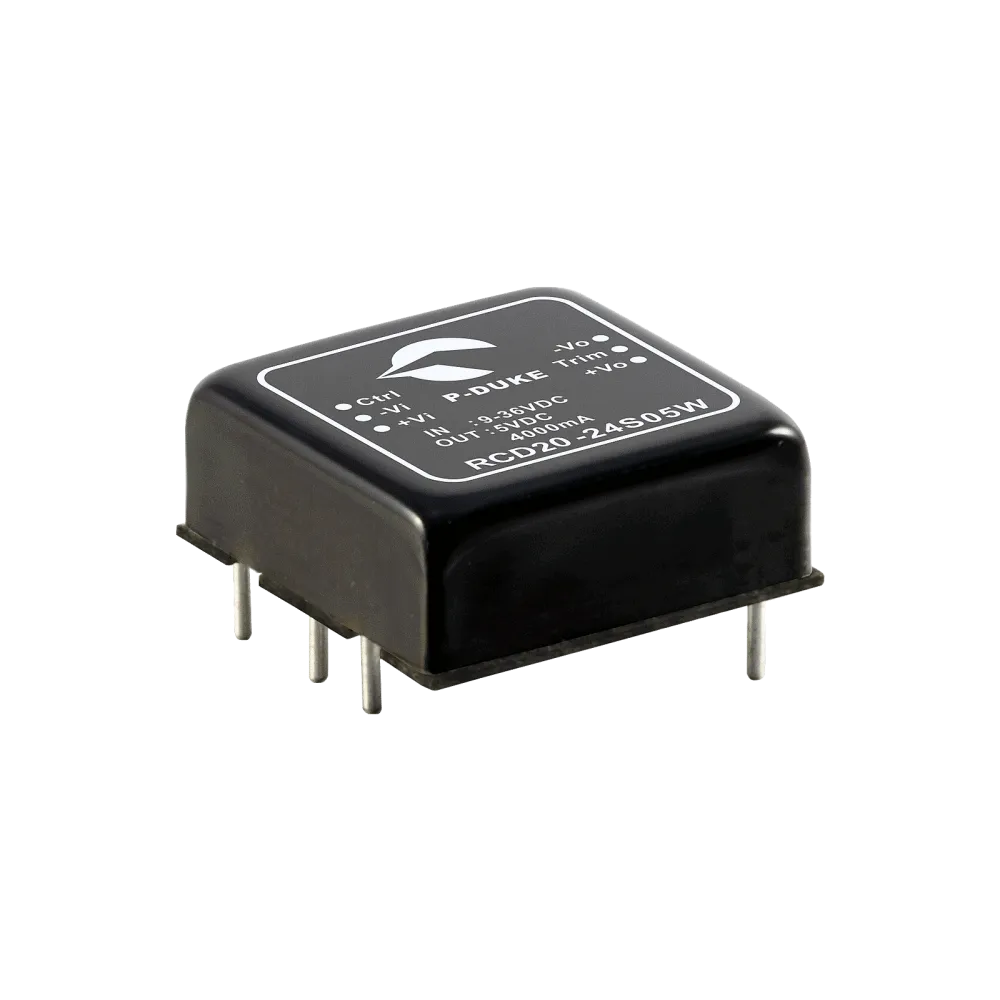

20W DC/DC-Converter, Input 9…36V, Output 5V/4A
Technical data
- 20Watt regulated
- 4:1 Wide Input Range
- Efficiency 91%
- Standard 1.00’’ x 1.00’’ x 0.39’’ Size
- IN/OUT Isolation 3000Vdc
- Input ranges: 9.36Vdc, 18.75Vdc, 36.160Vdc
- Remote ON/OFF
- Protections: short circuit, over current, over voltage, over temperature, under voltage
- Operating Temperature: -55°C…+100°C (M3 Version)
- Built-In EMI CLASS A Filter
- 3 years warranty
- Manufacturer P-DUKE
Product specifications
| Output voltage (VDC) | 5 V |
| Application | ITE/AV, Railway |
| Height | 9.9 mm |
| Width | 25.4 mm |
| Length | 25.4 mm |
| Package / case | 1x1 Inch |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 2250 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 9-36 V |
| Nominal input voltage (VDC) | 12-24 V |
| Output current | 4000 mA |
| Power | 20 W |
| Manufacturer | P-Duke |
