About the product

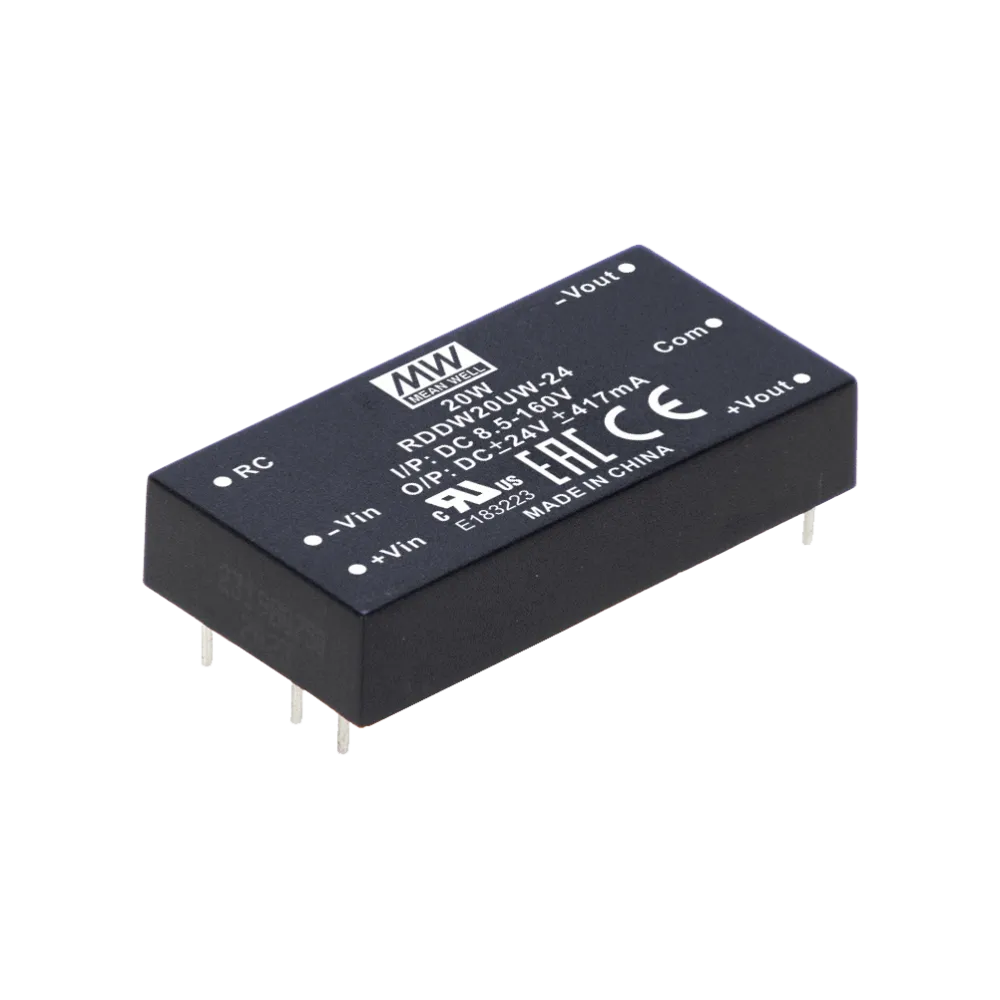

20W DC/DC-Converter, Input 8.5…160V, Output +/-24V / +/-0.417A
Technical data
- Compliance with Railway standard EN550155
- DIP package 2’’x1’’ with standard pinout
- 18 :1 (8.5…160Vdc) ultrawide input range
- Operating temperature range -40°…+95°C
- No minimum load required
- Fully encapsulated
- Protections : Continuous short circuit/Overload/Over voltage/Input under voltage lock-out
- 3kVdc I/O Isolation
- Remote ON/OFF
- Operating altitude 5000meters (note 5)
- 3 years warranty
- Manufacturer Mean Well
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | MEAN WELL |
| Application | ITE/AV, Railway |
| Height | 10.5 mm |
| Width | 25.4 mm |
| Length | 50.8 mm |
| Package / case | 2x1 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 8.5-160 V |
| Nominal input voltage (VDC) | 12-110 V |
| Output current | 417 mA |
| Power | 20 W |
| Manufacturer warranty | 3 years |
