About the product

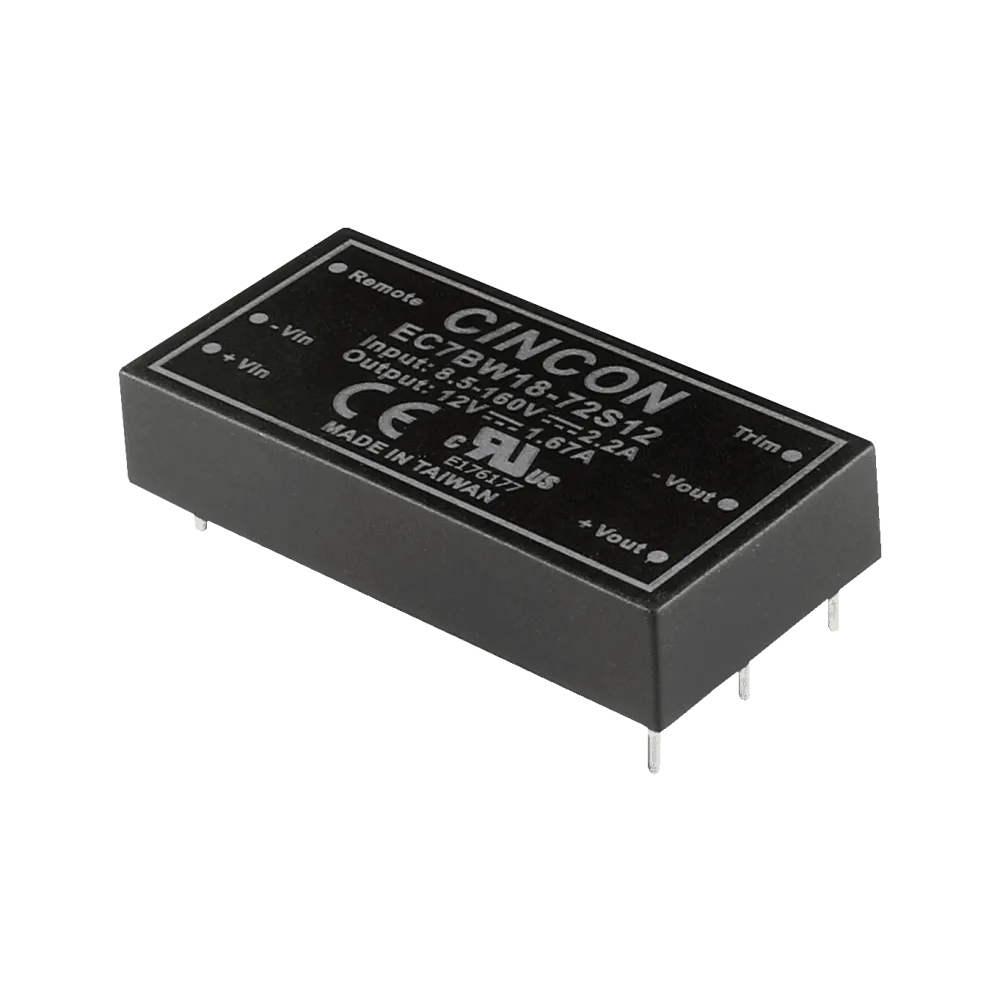

20W DC/DC-Converter, Input 8.5…160V, Output 12V/1.67A
Technical data
- 20W Isolated Output
- Efficiency 90%
- Fixed Switching Frequency
- 18:1 Input Range
- Regulated Outputs
- Remote ON/OFF
- Low No Load Power Consumption
- Protections: Over Current/Over voltage/Short circuit/Over Temperature/Under Voltage
- 2’’x1’’x0.4’’ size meets industrial standard
- CB Test Certificate IEC62368-1
- Fire & Smoke meets EN45545-2
- Shock & vibration meets EN50155 (EN61373)
- UL62368-1 2nd Reinforced Insulation approval
- Operating altitude 5000m
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Height | 10.2 mm |
| Width | 25.4 mm |
| Length | 50.8 mm |
| Package / case | 2x1 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 8.5-160 V |
| Nominal input voltage (VDC) | 12-110 V |
| Output current | 1670 mA |
| Power | 20 W |
| Manufacturer warranty | 3 years |
