About the product

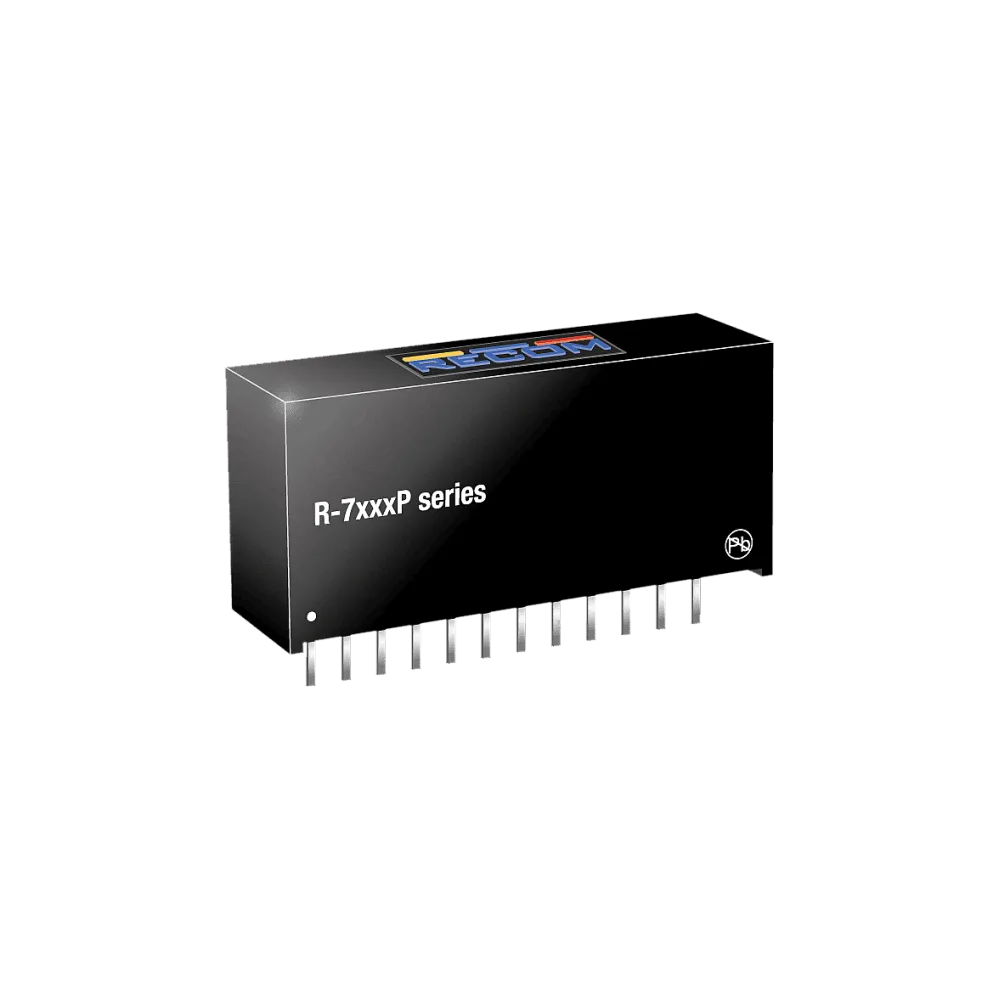

The R-7xxx series is a high performance 2.5V to 17V, 2Amp to 4Amp, 12-Pin SIP (single in-line package), integrated switching regulator (ISR). The synchronous – rectified design yields excellent efficiencies up to 97%. Short circuit protection reduces the short circuit input current to under 50mA.
Technical data
- Non-isolated
- Synchronous rectification design
- Adjustable output voltage
- 2, 3, 4Amp adjustable positive step down integrated switching regulator
- Over load protection
- Continuous short circuit protection
- Efficiency up to 97%
Product specifications
| Output voltage (VDC) | 3-5.5 V |
| Temperature range | -40°C to 85°C |
| Manufacturer | Recom |
| Height | 15 mm |
| Width | 9.1 mm |
| Length | 32.2 mm |
| Package / case | SIP12 |
| Regulation | Regulated |
| I/O isolation | Non isolated |
| Input voltage range (VDC) | 6.5-28 V |
| Nominal input voltage (VDC) | 9-24 V |
| Output current | 4000 mA |
| Power | 20 W |
| Efficiency | 95.00% |
